Part #:

Model: EDM-930

J.P. Instruments - Engine Data Management System (4 cyl)

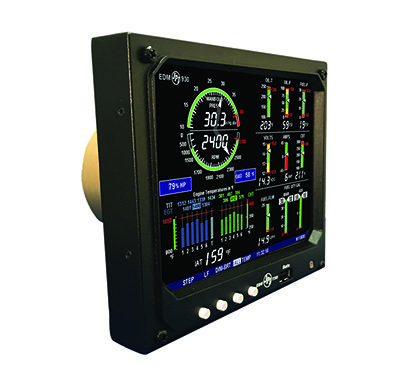

product image
Part Number :

JP Instruments with EMAPA – Blue Skies Aviation



EDM-930



FEATURES

  • All in One Complete Engine Digital Instrumentation With Memory
  • Available for 4 or 6 cylinder aircraft (i.e. EDM-930-4C, EDM-930-6C)
  • Built on EDM-900 platform with 4 microprocessors
  • Panel size: 6.0" W x 4.0" H x 7" deep
  • Hands-free, automatic scanning
  • All programming done from the Front Panel
  • LeanFind finds the first and last cylinder to peak with true peak detect eliminates false peaks
  • Displays both leaned temperature below peak and peak
  • Battery voltage with alarm
  • Amperes (load or charge/discharge meter)
  • Programmable alarm limits
  • Normalize view
  • Exhaust Gas Temperatures (EGTs) to stable 1°F resolution
  • DIF low to high EGT with alarm
  • EGTs to stable 1°F resolution
  • Shock cooling monitored on every cylinder
  • User selectable index rate
  • Fast response probes
  • Non-volatile long term memory
  • Records and stores data up to 30 hours
  • Post-flight data retrieval
  • Data downloadable to Palm Computer
  • Includes data retrieval software
  • Displays Oil pressure and temperature
  • Outside air temperature display
  • Includes Fuel level and fuel flow
  • Solid-state rotor fuel flow transducer
  • Fuel quantity in gallons, kilograms, liters, or pounds
  • Low fuel quantity alarm
  • Low fuel time alarm
  • GPS interface
  • Instantaneous fuel flow rate
  • Total amount of fuel consumed and total fuel remaining display
  • Time to empty at the curent fuel flow rate display
  • RPM and manifold pressure
  • Automatically calculates percent horsepower
  • History of extreme values during previous flight
  • Hobbs® timer
  • Options include: Fuel pressure, Carburetor temperature or induction temperature, Compressor discharge temperature option, Turbine inlet temperature





Part Number: Description:
930-4CP-0 4 Cyl. Primary Kit, No Fuel Tanks ,With FloScan Transducer
930-4CP-2 4 Cyl. Primary Kit L/R 2 Fuel Tanks. With FloScan Transducer
930-4CP-4 4 Cyl. Primary Kit L/R & Aux 4 Fuel Tanks, With FloScan Transducer
930-6CP-0 6 Cyl. Primary Kit, No Fuel Tanks With FloScan Transducer
930-6CP-2 6 Cyl. Primary Kit L/R 2 Fuel Tanks , With FloScan Transducer
930-6CP-4 6 Cyl. Primary Kit L/R & Aux 4 Fuel Tanks , With FloScan Transducer
930-7CP-4 7Cyl. Primary Kit L/R & Aux 4 Fuel Tanks , With FloScan Transducer
930-8CP-4 8 Cyl. Primary Kit L/R & Aux 4 Fuel Tanks , With FloScan Transducer
930-9CP D 9 Cyl. Primary Kit L/R & Aux 4 Fuel Tanks , With FloScan Transducer
930-D Remote display may be used to display parameters in a second location



930-4CP-0
- Engine Data Management System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
930-4CP-2
- Engine Data Management System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
930-4CP-4
- Engine Data Management System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
930-6CP-0
- Engine Data Management System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
930-6CP-2
- Engine Data Management System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
930-6CP-4
- Engine Data Management System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
930-7CP-4
- Engine Data Management System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
930-8CP-4
- Engine Data Management System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
930-9CP-4
- Engine Data Management System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
930-D
- Engine Data Management System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
930D
- Engine Data Management System Remote Display
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
