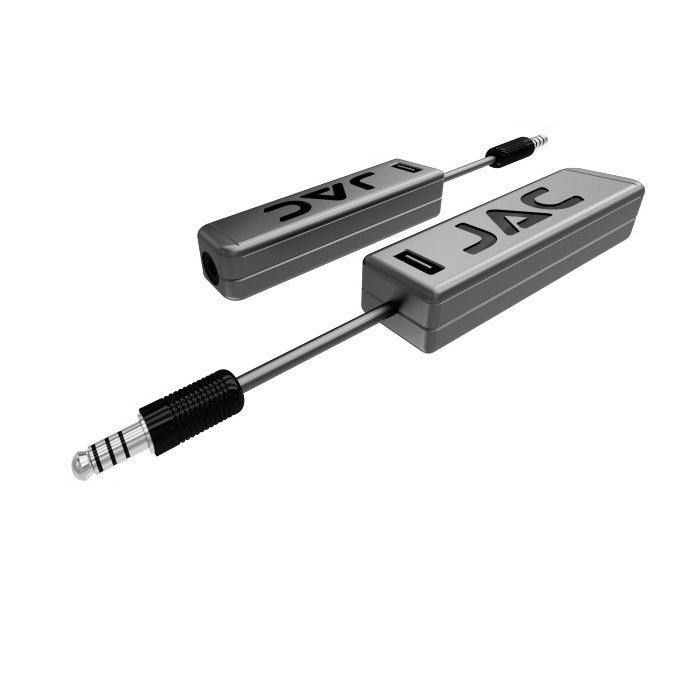

Picture of product JA44
Part #: JA44-001
Model: JA44
Desc: High Impedance Headset to Low Impedance Intercom Adapter
OEM: Jupiter Avionics
Sched-B: 8518903000
ECCN: EAR99
Part Number :
Jupiter Avionics



JA44
FEATURES
  • JA44-001 High Impedance Headset with the  Low Impedance Intercom Adapter provides a battery driven microphone bias voltage and phone transformers
  • Allow a high impedance headset to interface with a low impedance intercom system
  • Plugs in-line between the User’s headset cord and the aircraft intercom system headset xconnector
  • Supports a single control to adjust microphone level to intercom system
  • Supports automatic on / off power function when user plugs / unplugs headset from unit



SPECIFICATIONS

Operational Temperature: -20 to +50 °C Humidity: 95%
power: 9V Battery Altitude: 25,000 ft. MAX
Shock: 20g (any axis) Mic Input: Equivalent to 150 Ohm Amplified Dynamic Mic (250 mVrms)
Mic Output: Equivalent to 5 Ohm Dynamic Mic (250 uVrms) Phone Input: 8 Ohm (0.9 Vrms) 100mW
Phone Output: 150 Ohm (4.4 Vrms) 125mW Weight: 0.32 lbs (0.15 Kg) MAX. with batteries
Part Number: Description:
ja44-001 High Impedance Headset to Low Impedance Intercom Adapter







Serial # 14397
Condition NEW
Mods None
Tag Date 05/13/24
Shop Jupiter Avionics Corporation
Warranty 1 Year
JA44-001
- High Impedence Headset to Low Imp Intercom Adapter
Price Condition Status
$395.00 NEW OUTRIGHT 1 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
