Part #: JA84-001

Model: JA84

Jupiter Avionics

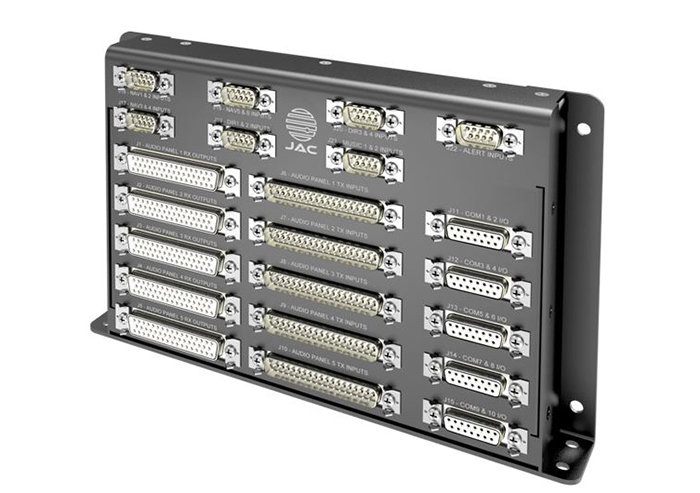

product image
Part Number :
Jupiter Avionics
JA84-001

FEATURES

The JA84-001 Audio Junction Panel is a centralized management system that distributes transceiver, receiver, ICS, music and warning source audio signals in an aircraft for up to four audio control panels
Compatible with most Jupiter and other manufacturers’ analogue audio control systems.
The JA84-001 supports up to:

  • Five audio control panels
  • Ten transceivers.
  • Six receivers.
  • Four direct audio inputs.
  • Four music inputs.
  • Five ICS Tie Lines in parallel or individual to an ICS Selector panel.
  • Four descrete Alert inputs
SPECIFICATIONS
oPREATING TEMPERATURE: -40 C to +70 C sURVIVAL TEMPERATURE: -55 C to +85 C
ALTITUDE: 50,000 ft. max HUMIDITY: 95%, 48 hrs.
shock: 20 g (any axis) tso compliance: Contact JAC for TSO status
installation kit: INST-JA84
Part Number audio junction panel Description
ja84-001 See details above

JA84-001
- Audio Junction Panel
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
