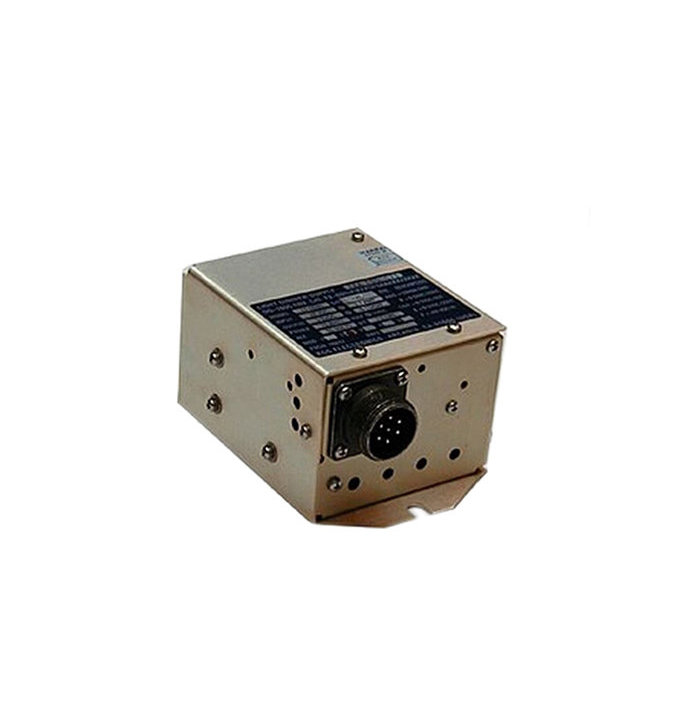

product image

Part #: LT-57A

OEM:

KGS

Desc:

DC Power Converter

Part Number :



LT-57A



FEATURES

  • Pulse width-modulated DC to DC converters that provide regulated high power DC
  • Transform an unregulated 28 VDC to a regulated fixed or adjustable DC output via a remote control potentiometer
  • State of the art design for regulation and positive logic for output overvoltage protection
  • Maximum output voltage is adjustable with an internal trim pot
  • Primarily designed to control the light intensity of incandescent bulbs in aircraft instrument lighting when requiring 0-15 amperes at 5 VDC output
  • Maximum current limit is adjustable with an internal trim pot
  • Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202 and MIL-T-5422F class 1A
  • Made for 0-10 amperes up to 13.75 VDC output



SPECIFICATIONS

Input: 28 VDC nom., 20-36 VDC, 2.2 ADC Weight: 1.2 lbs. (545 grams).
Output: 0 to 13.75 VDC adjustable: 10K 1/2W rheostat, 300 ohm to 10K 1/2W potentiometer, 0-5 VAC or 0-5 VDC voltage control, Fixed @ 13.75 VDC COMPLIANCE: FAA TSO-C71
Output: Adjustable with external 5k ohm,1/2 W linear pot (rheostat) Regulation: 2% for line, 2% load and 2% temperature



Output Voltage:
Part Number: Description:
LT-57A DC Power Converter
