Part #: LT-55D

Model: LT55D

OEM:

KGS

Desc:

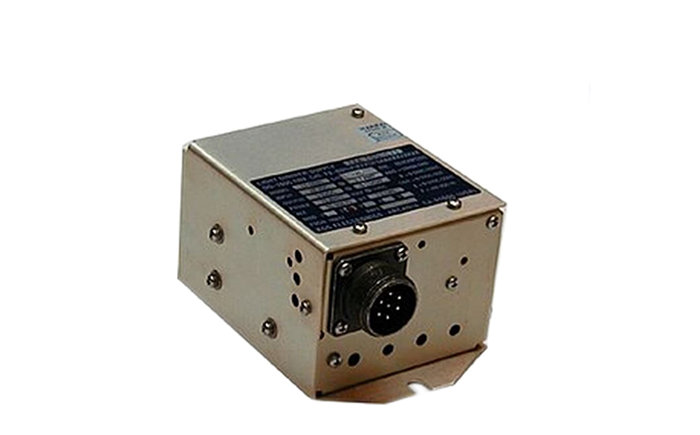

High Power Light Dimmer

Part Number :


LT-55D
FEATURES
  • Converters transform an unregulated 28 VDC to a regulated fixed or adjustable DC output via a remote control potentiometer
  • Designed to control the light intensity of incandescent bulbs in aircraft instrument lighting when requiring 0-15 amperes at 5 VDC output
  • State of the art design for regulation and positive logic for output overvoltage protection.
  • Maximum output voltage is adjustable with an internal trim pot.
  • Maximum current limit is adjustable with an internal trim pot.
  • Designed to meet various applicable portions MIL-STD 704 notice 3, MIL-STD-202 and MIL-T-5422F class 1A
  •
SPECIFICATIONS
Input Voltage: 28 VDC nom., 2.0 TO 36 VDC. Weight: 1.2 lbs. (545 grams).
Output Voltage: 0 to 5 VDC COMPLIANCE: FAA TSO-C71
Output Current: 0 - 15 ADC continous Regulation: 2% for line, 2% load and 2% temperature



Output Voltage:
Part Number: Description:
LT-55D Light Dimmer , High Power







LT-55D
- Light Dimmer
Price Condition Status
$925.00 NEW OUTRIGHT REQUEST LEAD TIME
