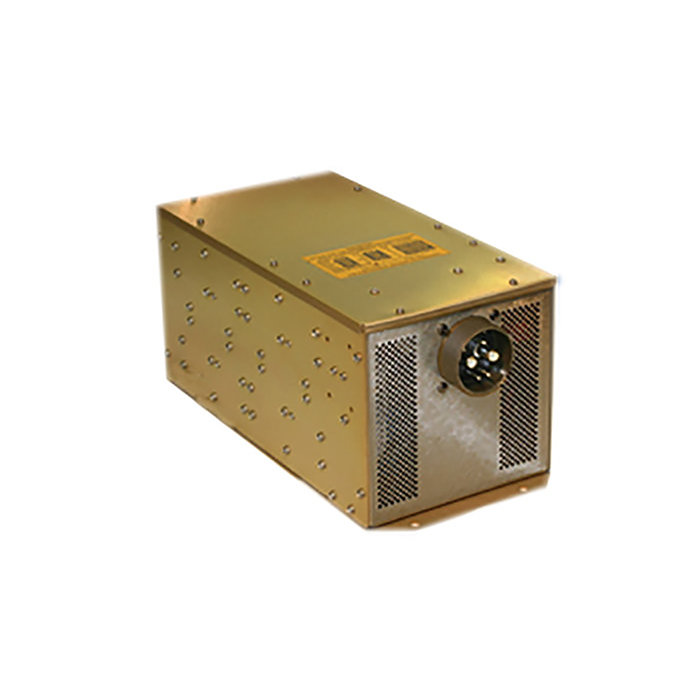

Picture of product SB200B

Part #: SB200(B)

Model: SB200B

OEM:

KGS

Desc:

Static Inverter

Part Number :


SB-200(B)



FEATURES

  • Solid state circuitry to invert a 28 Vdc input to 115 Vac, 60 Hz or 230 Vac, 50 Hz sine wave output
  • 60Hz SS series is certified to FAA TSO-C73 airborne standards
  • Designed to power laptop computers, audio/video entertainment systems, portable electronics, microwave ovens, coffee makers and medical equipment in airborne
  • Marine and ground mobile applications



SPECIFICATIONS
Dimensions: 7.75"W x 4.00"H x 12.0"L Weight: 17.0 lbs.
Input Voltage: 28 Vdc (nominal), 20 Vdc to 36.5 Vdc Range Input Current: 2.0 Adc (nominal) at NL; 83 Adc (nominal) at FL (2Kva) at 28 Vdc
POWER FACTOR: +0.8 TO -0.8 Wave Form: Sine wave
Output Voltage: 115 VAC (108 TO 120 VAC) Phase: Single
Altitude: 55,000 ft. Temperature: -55 ° C to +71 ° C (-65 ° F to +160 ° F)
EFFICIENCY: 87 % (nominal) OUTPUT FREQUENCY: 60 HZ
Compliance: SS Series Approved under  FAA TSO-C73 Environmental: RTCA DO-160C Env. Cat. F3ZBB[LV]E1XXXXXBXAXXXZXXX
Output Current: 17.4 Amps RMS Response Time: 300 uSec (No Load to Full Load)



Part Number: Description:
SB200(B) Static Inverter



Serial # 193
Condition SVC
Mods 2
Tag Date 07/18/22
Shop KGS Electronics
Warranty 6 Months
SB200(B)
- Static Inverter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
$7,500.00 SV OUTRIGHT 1 IN STOCK
$2,750.00 SV EXCHANGE 1 IN STOCK
