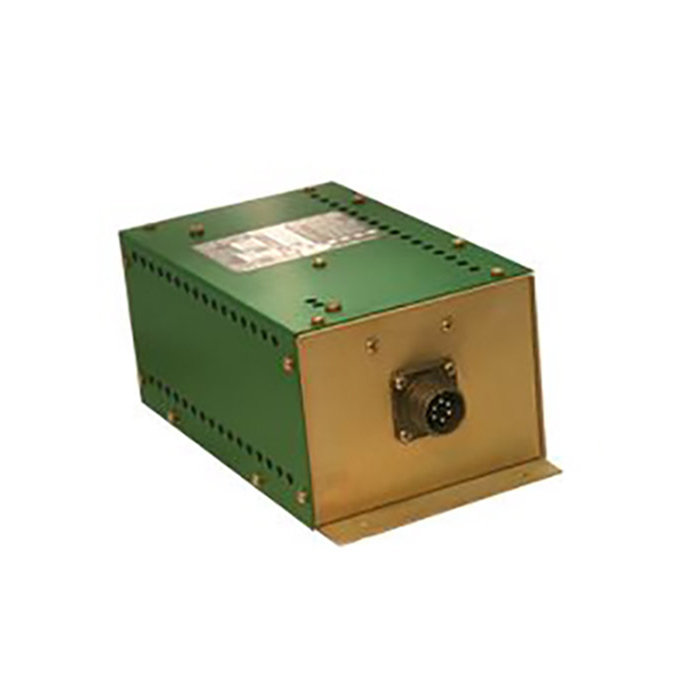

Picture of product SPC-10(F)

Part #: SPC-10(F)

NSN:

6130-01-433-0121

OEM:

KGS

Desc:

Static Inverter

Part Number :






FEATURES

  • Utilizes solid state circuitry to convert 28 VDC to 115 VAC, 400 Hz sine wave power
  • Design features include pulse-width modulated square to sine wave power conversion
  • Capable of delivering an overload of 150% of rated current for a duration not less than five minutes under all environmental conditions
  • Phase Lock
  • AC Return



SPECIFICATIONS
 Efficiency  (%) : 82 min. Weight: 5.5 lbs.
Output Power  (Total) 115 VAC and / or 26 VAC : 250 VA , 250 VA / 150 VA Input Current (ADC): 10.6 @ 28 VDC IN
Output Voltage: 115 VAC and / or 26 VAC Frequency: 400 Hz ± 1%
Amplitude Distortion: Less than 7% (3% Typ.) Power Factor: .8 to -.95
Altitude: 55,000 ft. Temperature: -65°F to +160°F (-55°C to +71°C)
Humidity: Tested to greater than 95% for 10 days, temperature was cycled between 75°F to 160°F Environmental: Qualified to meet RTCA paper D0-160 Env. Cat. D2BR--



Output Voltage:

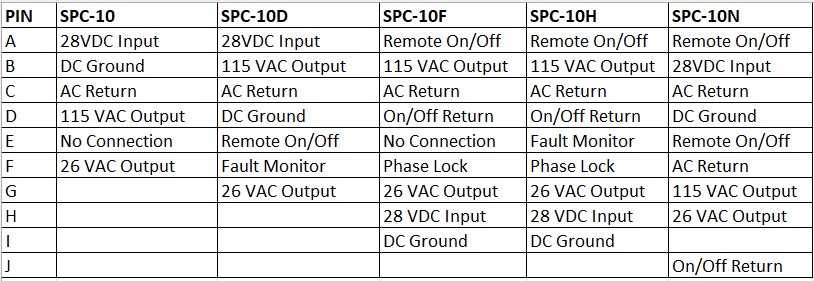

Part Number: Description:
spc-10 Inverter, 28 VDC INPUT, DC GROUND, AC RETURN, 115 VAC OUTPUT, NO CONNECTION, 26 VAC OUTPUT, MS3106B14S-6S
spc-10(D) Inverter (28 VDC INPUT), 115 VAC OUTPUT, DC GROUND, REMOTE ON/OFF,  FAULT MONITOR, 26 VAC OUTPUT, MS3106B18-9S
SPC-10(PW) Static Inverter
spc-10(F) Static Inverter, REMOTE ON/OFF,  115 VAC OUTPUT, AC RETURN, ON/OFF RETURN, NO CONNECTION, PHASE LOCK, 26 VAC OUTPUT, 28 VDC INPUT, DC GROUND,  MS3106B20-16S
SPC-10HD Static Inverter, 28 VDC INPUT, 115 VAC OUTPUT, AC RETURN, DC GROUND, REMOTE ON/OFF,  FAULT MONITOR, 26 VAC OUTPUT, MS3106B18-9S
SPC-10(H) Static Inverter, REMOTE ON/OFF, REMOTE ON/OFF, AC RETURN, ON/OFF RETURN, FAULT MONITOR, PHASE LOCK, 26 VAC OUTPUT, 28 VDC INPUT, DC GROUND, MS3106B20-16S
SPC-10(n) Static Inverter, FAULT MONITOR, 28 VDC INPUT, PHASE LOCK, DC GROUND, REMOTE ON/OFF, AC RETURN, 115 VAC OUTPUT, 26 VAC OUTPUT, ON/OFF RETURN, MS3476L14-9S







SPC-10(F)
- Static Inverter

NSN: 6130-01-433-0121

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
