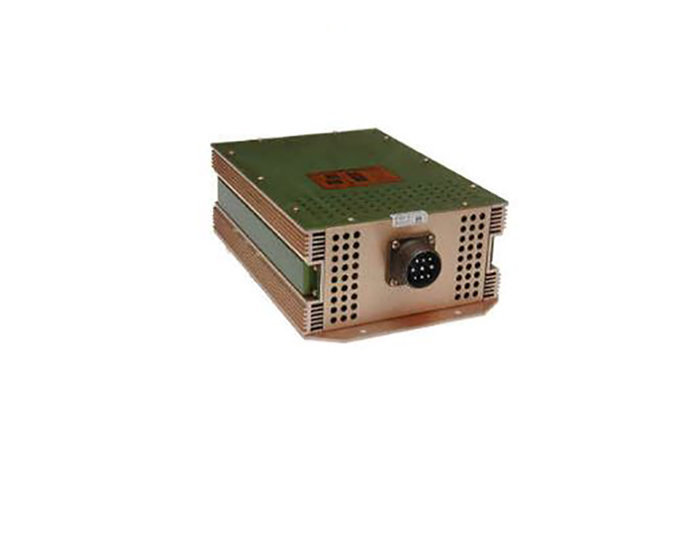

product image

Part #: SPS-1607A

Model: SPS1607A

NSN:

6130-01-386-7056

OEM:

KGS

Desc:

Static Inverter

Part Number :


SPS-1607(A)
FEATURES
  • Accepts 28VDC input and outputs 115VA at 1000VA, 60 Hz)
  • Specifically designed for airborne applications to operate microwave ovens, medical equipment, video systems and other electrical appliances
  • Available for parallel operation where greater output is required
  • TSO'd (C73)
  • 60 amp circuit breaker rating



SPECIFICATIONS
Dimensions: 7.75"W x 10.2"H x 14.0"L Weight: 24.5 lbs.
Input Voltage: 28 VDC ± 2 DC Input Current: 42 ADC
Output Power CONT: 1200 VA Wave Form: Clipped Sine
Output Voltage: 115 VAC Phase: Single
Altitude: 55,000 ft. Temperature: -65°F to +160°F (-55°C to +71°C)
DISTORTION: 15% Intermit Duty: 1600 VA
EFFICIENCY: 80% Qualification: 60 Hz Static Inverter Approved under FAA TSO-C73



Part Number: Description
SPS-1607A Static Inverter



SPS-1607A
- Static Inverter

NSN: 6130-01-386-7056

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST SV EXCHANGE REQUEST LEAD TIME
