Part #:

Model: Dongle

OEM:

Kannad

Desc:

Programming Dongle (Portable)

Part Number :


ELT Dongle
FEATURES
  • Serial Memory Module
  • Pre-wired ELT Dongle
  • Programming, Maintenance or Assembly Dongle versions available (See P/N Chart)
  • Once programmed, the dongle contains the identification information of the aircraft - portable & installed versions available (See P/N Chart)
  • The use of a programming dongle eliminates the need for specific programming equipment such as the PR600 when replacing an ELT
  • When an unprogrammed ELT is installed & connected to the programming dongle (and the ELT is switched to "arm") the ELT will automatically update its own memory with the ID data contained on the dongle
  • It is possible to delete the ID info on an ELT with the use of a Maintenance Dongle
    • Any accidental transmission with the maintenance dongle will not involve SAR as the ID code transmitted is recognized as "not onboard"

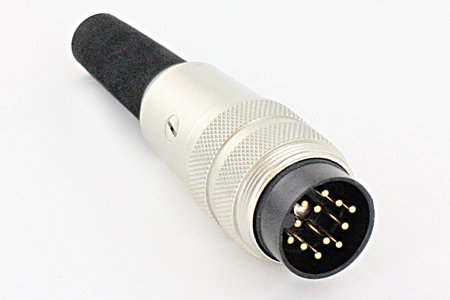

  • The "Assembly" version consists of the DIN-12 connector w/Programming Dongle connected (See Image Below)
Dongle Assembly
Part NumberELT Dongle Description:
S1820514-01 Programming Dongle, Portable
S1820514-02 Maintenance Dongle
S1820514-03 DIN-12 Connector
S1820514-04 Programming Dongle (A320)
S1820514-05 Programming Dongle (A330/A340)
S1820514-06 Programming Dongle Assembly, Installed (DIN-12 & Dongle)



S1820514-01
- Programming Dongle (Portable)
Price Condition Status
$295.00 NEW OUTRIGHT REQUEST LEAD TIME
S1820514-04
- Programming Dongle, A320
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S1820514-05
- Programming Dongle, A330/340
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S1820514-06
- Programming Dongle Harness (Installed)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
