Part #:

Model: Ultima-S

Kannad - Survival Emergency Locator Transmitter
product image
Part Number :

Orolia Launches World's First Next-Generation Emergency Beacon for  Commercial Aircraft | Aviation Pros

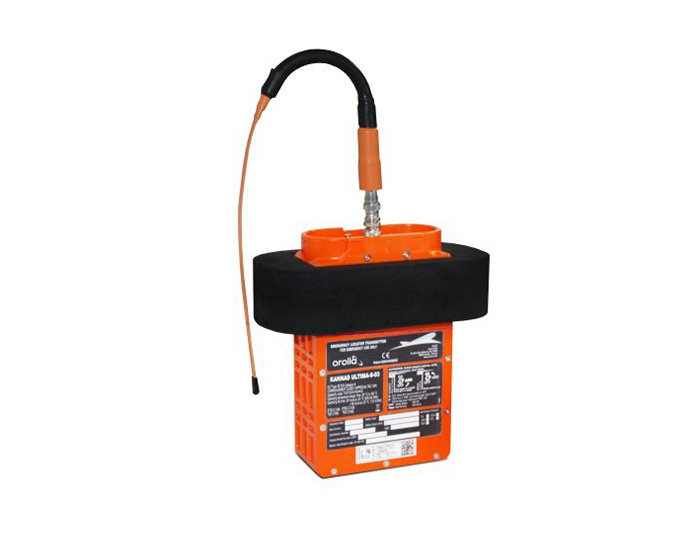

Kannad Ultima-S





FEATURES

  • Compliant with the EASA / FAA special conditions
  • Manual & automatic activation upon contact with water
  • Beacon’s  location  is  determined  through  its  embedded GNSS receiver
  • Use's GPS and Galileo satellite constellations for faster signal detection and robust position acquisition
  • Lithium battery technology and a smart design
  • Batteries allow temporary operation at cold temperature (-40 °C)
  • Ultima-S includes a distress acknowledgment capability
  • Non-rechargeable lithium battery compliant with the EASA / FAA special conditions
  • Manual & automatic activation upon contact with water
  • User’s accurate location determined through embedded multi-constellations GNSS receiver
  • Return Link Service (RLS) - Distress signal acknowledgement to the user
  • Various integration options available including bag or mounting bracket in the aircraft cabin or in life raft





SPECIFICATIONS

PRODUCT TYPE: Category A and B; Class 2, Cospas Sarsat ELT(S) WEIGHT: 1.55 kg (without bracket)
MOUNTING: Horizontal or vertical with bracket, bag PROGRAMMING: PR600 programmer or dongle, via dedicated connector
TEMPERATURE: -20 °C - +55 °C for full operating lifetime, -40 °C temporary operation for 30 min, -40 °C - +85 °C storage LOCATION: GPS and Galileo L1 internal receiver, 72 channels
Battery type: Lithium, MnO2 SIGNAL/MESSAGE: 406 MHz, First Generation Beacon; programmable protocols, 121.5 MHz homing signal
DIMENSIONS: With antenna: 320 mm x 200 mm x 105 mm, Without antenna: 200 mm x 200 mm x 105 mm Activation: Manual and water switch (cat A variants), manual (cat B variants)
Approvals and certifications: Cospas Sarsat TAC pending, (E)TSO-C126c, (E)TSO-C142b, DO-227A, DO-160G, DO-178C/254
Part Number: Description:
S1863501-03 KANNAD ULTIMA-S, ELT - Other Airframers Ultima-S version
S1863501-13 KANNAD ULTIMA-S, ELT - Boeing Ultima-S version



S1863501-03
- Portable Cabin ELT
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
S1863501-13
- Portable Cabin ELT (Boeing Version)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
