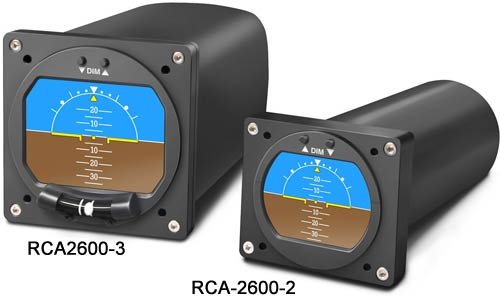

Picture of product RCA 2600

Part #: RCA2600-2

Model: RCA 2600

OEM:

Kelly Mfg.

Desc:

Digital Attitude Indicator (2 Inch)

Part Number :
Bendix logo

RCA 2600 Series
FEATURES
  • Next Generation Electric Digital Attitude Indicator
  • Designed as a replacement for any Electronic Attitude Gyro
  • No moving parts
  • 360° of Pitch & Roll
  • Multi-Volt operation (9 to 32 Volts)
  • Fits any standard cutout
  • Bright, highly visible LCD display
  • 3" and 2" Models Available - See P/N Chart Below
  • Lightweight: 2" = 8.5 oz; 3" = 16 oz
  • NOTE: Panel Tilt Angle is set at the factory & must be specified at time of order.

*INSTALLATION NOTICE: The RCA2600 Digital Horizon is certified to TSO C4c for attitude indicators. This does not necessarily mean that it can be installed in certified aircraft by means of the field approval process. Further FAA approval may be required. For specific information about whether it can be installed on a particular aircraft, please contact your local FAA Representative.



SPECIFICATIONS
Operating Voltage: 9 to 32 VDC Starting Current: 9VDC: 0.18 to 0.22 Amps Max
Running Current:  14VDC: 0.20 Amps Max; 28VDC: 0.18 Amps Max Circuit Breaker Size: 2 Amp
Settling Error: 1° Max in Roll & Pitch Operating Temp: -30° to +50° C
RCA2600-2 Dimensions: 2.764" W x 2.387" H x 6.010" L (w/out connector) RCA2600-3 Dimensions: 3.39" W x 3.39" H x 6.50" L (w/out connector)
FAA Spec: TSO-C4c (*See Install Notice) Mounting Hardware: 6-32 screw - 0.5" plus panel thickness
Mating Connector: MS3116E8-4S or equivalent Pinout: A = GND, B = PWR, C = SPARE, D = SPARE
Part NumberDigital Attitude Indicator Description:
RCA2600-2 2 Inch Indicator
RCA2600-3 3 Inch Indicator*



RCA2600-2
- Digital Attitude Indicator (2 Inch)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
