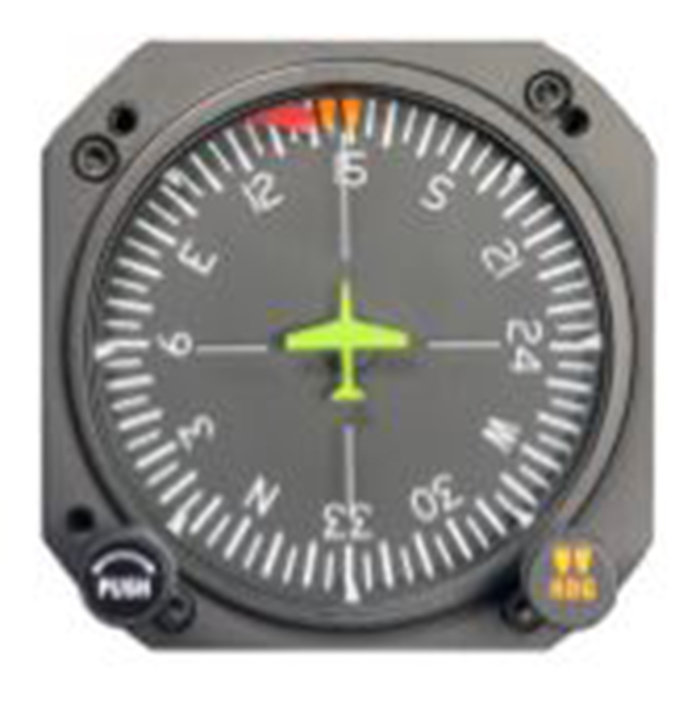

Picture of product RCA15BK-16

Part #: 103-0037-01

Model: RCA15BK-16

OEM:

Kelly Mfg.

Desc:

Electric Directional Gyro

Part Number :


FEATURES
  • Push-to-Set knob
  • AC brushless motor
  • Power Failure flag
  • Un-lighted
  • 14 and 28 volt models
  • Heading Bug or 400HZ, 5K autopilot output
  • 28 V, 400HZ, 5K
  • Mating connector MS3116E8-4S Autopilot mating connector: Amphenol part number 126-223 or Winchester part number M5SH9C



SPECIFICATIONS
Length: 7.4 in. Height: 3.4 in.
Width: 3.4 in. Weight: 3.0 lbs.
Starting Current: 14 VDC - 2.4 A max; 28 VDC - 1.4 A max Running Current: 14 VDC - 1.2 A; 28 VDC - 0.6 A
Recommended Circuit Breaker: 14 VDC - 3 A; 28 VDC - 2 A Connector Pinout A: Spare
Connector Pinout B: Spare Connector Pinout C: +28 VDC Motor
Connector Pinout Ground Motor Autopilot Pinout B: HDG SIG Input Common
Autopilot Pinout A:  HDG SIG Output Autopilot Pinout E: HDG SIG Output Common
Autopilot Pinout H: Spare Autopilot Pinout D: HDG SIG Input
Part Number Directional Gyro Description:
RCA15BK-16 Electric Directional Gyro



103-0037-01
- Directional Gyro, 28 Volt, 400 hz, 5HKz Auto-Pilot
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
