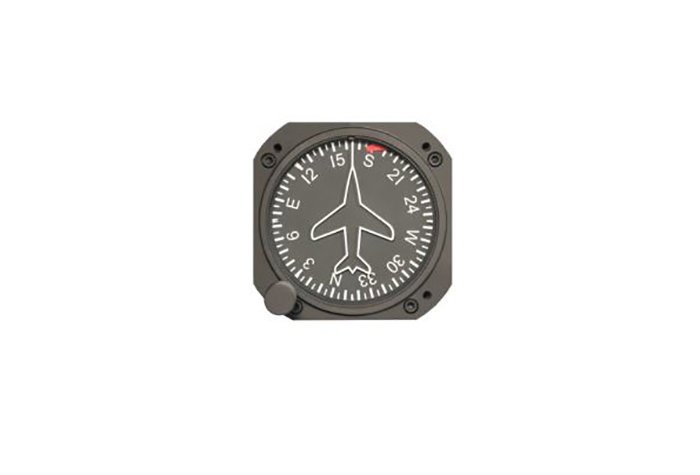

Picture of product RCA15EK-1

Part #: 103-0041-01

Model: RCA15EK-1

OEM:

Kelly Mfg.

Desc:

Electric Directional Gyro

Part Number :

Kelly Manufacturing Logo

FEATURES

  • 3-inch Electric Directional Gyro
  • Lighted
  • Multi-volt capable of operating from 10-30 VDC
  • May be used in both fixed wing and rotorcraft
  • Power failure flag
  • Internal 3 phase inverter produces high starting torque, increase gyro rotor speed
  • Internal lighting provide even light distribution at any intensity level
  • Calibrated to accuracy of 3 degrees max drift error after 10 minutes of +- 1.5 deg Scorsby motion
  • Connector pinout:  A: Ground Motor, B: Ground Lights, C: +12-30VDC Motor, D: +12-30VDC Lights



SPECIFICATIONS
AZIMUTH Range: 360 degrees ALTITUDE: 1000-40000 FEET
Pitch Trim Range: +-7 deg. min. Altitude: -1000 to +40000 ft.
Electrical (14V): Required - 3.4A starting, 1.7A running, 4A circuit breaker ELECTRICAL (28v): Required - 1.4A starting, 0.7A running, 2A circuit breaker
Weight: 2.7 lbs. dimensions: 6.7" L x 3.4" W x 3.4" H
Part Number: Description:
103-0041-01 Directional Gyro, Lighted



103-0041-01
- Electric Directional Gyro (Lighted)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
