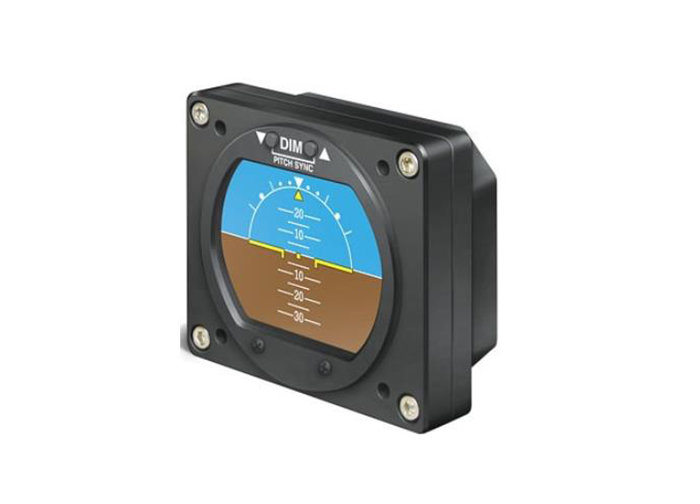

product image

Part #:

Model: RCA2610-2-G

OEM:

Kelly Mfg.

Part Number :

Kelly Manufacturing Logo

RCA2610-2-G

FEATURES
  • The RCA2610 is totally self-contained and has no mechanical gyro or special external connections
  • The screens are highly visible and have adjustable brightness controls
  • Performance characteristics include full 360 degrees of roll and pitch with a settling error of 1 degree maximum
  • With no moving parts RCA2610 will have a longer lifespan than traditional gyroscopic instruments
  • RCA2610-G which comes without the Pitch-Sync feature
  • The symbolic airplane is not adjustable.
  • Both versions are available in 3-inch and 2-inch sizes and are designed as a direct replacement for your Electric Attitude Gyro
  • New Digital Slip Indicator
  • New Digital Rate of Turn Indicator
  • Internal Battery Backup
  • Pitch Sync feature
  • 360 degrees of pitch and roll
  • Multi-volt operation (9 to 32 VDC)
  • Bright, adjustable LCD Display
  • NVIS Night Vision Option
  • Fits standard 2” or 3” panel cutout
  • Totally digital operation (no moving parts)
  • Black anodized bezel
  • Fully FAA Certified
  • TWO-YEAR WARRANTY
  • Attitude Indicator with Digital Slip Indicator and Digital Rate of Turn Indicator
  • Attitude Indicator with Digital Slip Indicator only
  • Attitude Indicator only with optional Mechanical Slip Indicator (P/N 444-0010-01)
  • New Internal Battery Backup option for All 3-Inch configurations



SPECIFICATIONS
weight: 4.75 oz. height: 2.4 in. max
length: 1.22 in. max width: 2.75 in. max
connector pin-out: A: GROUND B: + POWER IN C: SPARE D: SPARE mating connector: (MS3116E8-4S) & panel screws included
certifications: TSO-C4c, TSO-C113a, DO-160G, and DO178B Level C TSO-C3e operating voltage: 9 to 32 VDC
current draw: 0.20 A max circuit breaker: 1 A
Part Number  Description:
102-0402-03-03 Digital  Indicator 2-inch (No Pitch Sync)
102-0402-07-03 Digital Slip Indicator Only (No Pitch Sync)
102-0402-11-03 Digital Slip Indicator & Rate of Turn  (No Pitch Sync)



102-0402-03-03
- Digital Slip Indicator (2" w/o Pitch Sync)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0402-07-03
- Digital Slip Indicator (2" w/o Pitch Sync)
Price Condition Status
$2,750.00 NEW OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0402-11-03
- Digital Attitude Indicator (2" w/o Pitch Sync)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
