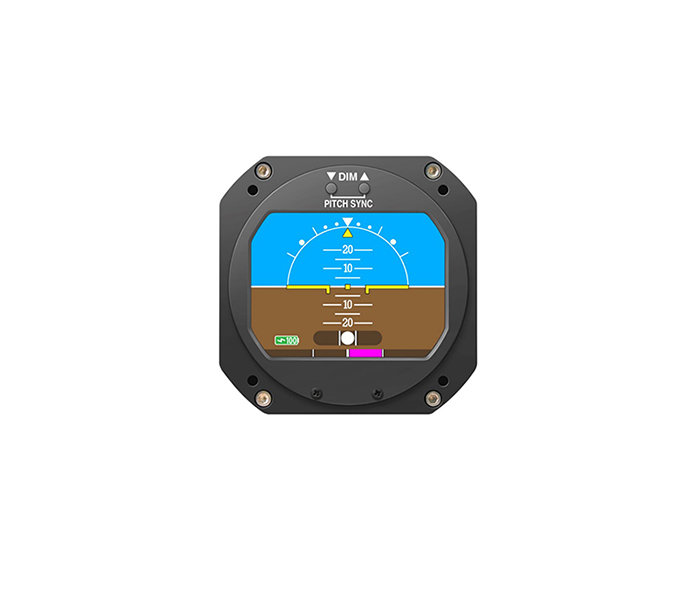

Picture of product RCA2610-3

Part #:

Model: RCA2610-3

OEM:

Kelly Mfg.

Desc:

Electric Digital Horizon Indicator

Part Number :

Kelly Manufacturing Logo

RCA2610-3

FEATURES
  • The RCA2610 is totally self-contained and has no mechanical gyro or special external connections
  • The three-inch RCA2610-3 also comes with an optional Internal Battery Backup
  • The standard Pitch Sync feature allows pilots to instantly synchronize the airplane symbol to the horizon line when flying in a pitch up or pitch down attitude
  • All models come with an NVIS Night Vision filter option
  • The screens are highly visible and have adjustable brightness controls
  • Performance characteristics include full 360 degrees of roll and pitch with a settling error of 1 degree maximum
  • With no moving parts RCA2610 will have a longer lifespan than traditional gyroscopic instruments
  • New Digital Slip Indicator
  • New Digital Rate of Turn Indicator
  • Internal Battery Backup
  • Pitch Sync feature
  • 360 degrees of pitch and roll
  • Multi-volt operation (9 to 32 VDC)
  • Bright, adjustable LCD Display
  • NVIS Night Vision Option
  • Fits standard 2” or 3” panel cutout
  • Totally digital operation (no moving parts)
  • Black anodized bezel
  • Fully FAA Certified
  • TWO-YEAR WARRANTY
  • Attitude Indicator with Digital Slip Indicator and Digital Rate of Turn Indicator
  • Attitude Indicator with Digital Slip Indicator only
  • Attitude Indicator only with optional Mechanical Slip Indicator (P/N 444-0010-01)
  • New Internal Battery Backup option for All 3-Inch configurations



SPECIFICATIONS
weight: 6.75 oz. height: 3.37 in. max
length: 1.22 in. max width: 3.37 in. max
connector pin-out: A: GROUND B: + POWER IN C: SPARE D: SPARE mating connector: (MS3116E8-4S) & panel screws included
certifications: TSO-C4c, TSO-C113a, DO-160G, and DO178B Level C TSO-C3e operating voltage: 9 to 32 VDC
current draw: 0.20 A max circuit breaker: 1 A
Part Number  Description:
102-0403-03-01 Electric Digital Horizon Indicator, Pitch Sync
102-0403-05-02 Electric Digital Horizon Indicator, Pitch Sync, NVIS Compatible
102-0403-07-01 Electric Digital Horizon Indicator, Pitch Sync, Slip Indicator
102-0403-09-02 Electric Digital Horizon Indicator, Pitch Sync, Slip Indicator, NVIS Compatible
102-0403-11-01 Electric Digital Horizon Indicator, Pitch Sync, Slip Indicator, Turn Rate Indicator
102-0403-13-02 Electric Digital Horizon Indicator, Pitch Sync, Slip Indicator, Turn Rate Indicator, NVIS Compatible
102-0403-03-09 Electric Digital Horizon Indicator, Pitch Sync, Battery Backup
102-0403-05-10 Electric Digital Horizon Indicator, Pitch Sync, Battery Backup, NVIS Compatible
102-0403-07-09 Electric Digital Horizon Indicator, Pitch Sync, Slip Indicator, Battery Backup
102-0403-09-10 Electric Digital Horizon Indicator, Pitch Sync, Slip Indicator, Battery Backup, NVIS Compatible
102-0403-11-09 Electric Digital Horizon Indicator, Pitch Sync, Slip Indicator, Turn Rate Indicator, Battery Backup
102-0403-13-10 Electric Digital Horizon Indicator, Pitch Sync, Slip Indicator, Turn Rate Indicator, Battery Backup, NVIS Compatible




102-0403-01-03
- Digital Slip Indicator
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-03-01
- Digital Slip Indicator (3" w/ Pitch Sync)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-03-09
- Digital Slip Indicator (3" w/ Pitch Sync, Battery)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-05-02
- Electric Digital Horizon
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-05-10
- Electric Digital Horizon
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-07-01
- Digital Slip Indicator (3-Inch w/ Pitch Sync)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-07-09
- Digital Slip Ind (3" w/ Pitch Sync, Battery)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-09-02
- Electric Digital Horizon
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-09-10
- Electric Digital Horizon
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-11-01
- Digital Slip, Rate of Turn Ind (3" w/ Pitch Sync)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-11-09
- Digital Attitude Indicator (3-Inch w/ Battery)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-13-10
- Electric Digital Horizon
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
