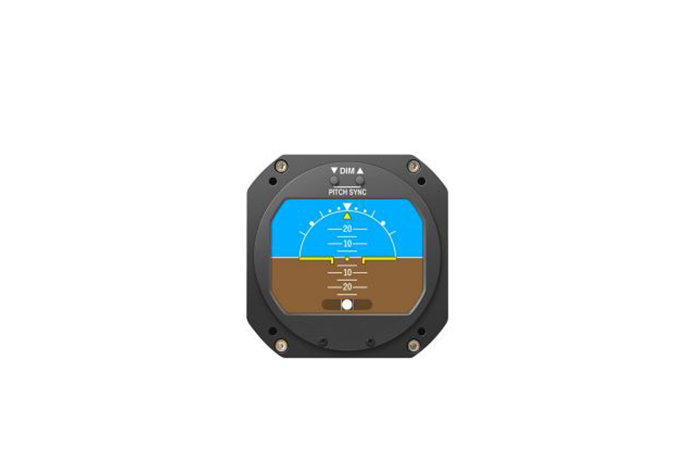

Picture of product RCA2610-3P-G

Part #:

Model: RCA2610-3P-G

OEM:

Kelly Mfg.

Part Number :

Kelly Manufacturing Logo

RCA2610-3P-G

FEATURES
  • The RCA2610-P Pitot-Static has all of the same features that is on the standard RCA2610 Digital Attitude Indicator but has additional Pitot-Static input
  • RCA2610 uses mathematical algorithms to calculate airspeed which is perfect for most small aircraft
  • The addition of the Pitot-Static input, gives the RCA2610-P more precise speed information for greater accuracy and stability in faster, high performance aircraft
  • The screens are highly visible and have adjustable brightness controls
  • Performance characteristics include full 360 degrees of roll and pitch with a settling error of 1 degree maximum
  • With no moving parts RCA2610 will have a longer lifespan than traditional gyroscopic instruments
  • New Digital Slip Indicator
  • New Digital Rate of Turn Indicator
  • Internal Battery Backup
  • Pitch Sync feature
  • 360 degrees of pitch and roll
  • Multi-volt operation (9 to 32 VDC)
  • Bright, adjustable LCD Display
  • NVIS Night Vision Option
  • Fits standard 2” or 3” panel cutout
  • Totally digital operation (no moving parts)
  • Black anodized bezel
  • Fully FAA Certified
  • TWO-YEAR WARRANTY
  • Attitude Indicator with Digital Slip Indicator and Digital Rate of Turn Indicator
  • Attitude Indicator with Digital Slip Indicator only
  • Attitude Indicator only with optional Mechanical Slip Indicator (P/N 444-0010-01)
  • New Internal Battery Backup option for All 3-Inch configurations



SPECIFICATIONS
weight: 6.75 oz. height: 3.37 in. max
length: 1.22 in. max width: 3.37 in. max
connector pin-out: A: GROUND B: + POWER IN C: SPARE D: SPARE mating connector: (MS3116E8-4S) & panel screws included
certifications: TSO-C4c, TSO-C113a, DO-160G, and DO178B Level C TSO-C3e operating voltage: 9 to 32 VDC
current draw: 0.20 A max circuit breaker: 1 A
Pitot-Static porT: 1/8 NPT fitting
Part Number  Description:
102-0403-04-07 Digital  Indicator 3"
102-0403-04-15 Digital  Indicator 3" (w/Battery )
102-0403-08-07 Digital Slip Indicator Only 3" (No Pitch Sync)
102-0403-08-015 Digital Slip Indicator & Slip 3" (w Battery/No Pitch Sync)



102-0403-04-07
- Digital Attitude Ind, Pitot/Static, w/o Pitch Sync
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-04-15
- Digital Slip Ind, Pitot/Static, w/ Battery
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-08-07
- Digital Slip Ind, Pitot/Static w/o Pitch Sync
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
102-0403-08-15
- Digital Slip Ind, Pitot/Static, w/o Pitch Sync
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
