Part #: 504-0127-902
Model: 1200-7R(6D)
NSN: |
|
OEM: |
L3Harris |
Desc: |

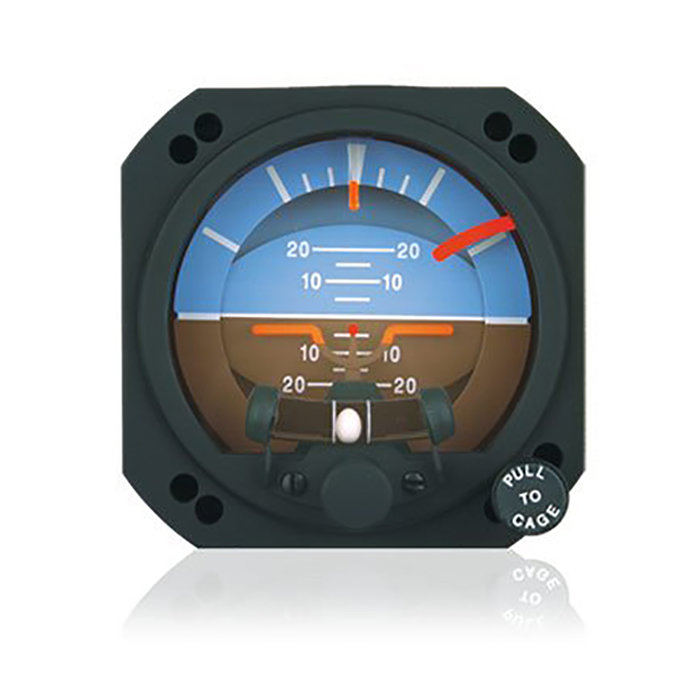

Attitude Indicator |
Part Number :
Select part number above to view pricing and availability.
| Price | Condition | Status | Tag Info | |
|---|---|---|---|---|
| $6,936.00 | NEW OUTRIGHT | REQUEST LEAD TIME |
|
AIM 1200
FEATURES
- Backup Attitude Gyro
- 3" Bezel mount options for both front and rear instrument panel installations
- Replaces AIM 510 series
- Available for installation in shock mounted panels from 0 to 20 degrees
- Input Power: 28 VDC
- Models available with HIRF and lightning protection to RTCA DO-160D
- Certified to FAA TSO C4c
- Available Options (see Part Number Chart):
- Fixed and trimmable airplane symbols
- Fixed and rotating roll scale conventions
- Lighting color and power, including NVG
- Inclinometer (slip indicator)
SPECIFICATIONS
| Dimensions: | 1200-2(): 7.160"L x 3.580"H x 3.580"W max 1200-8(): 7.160"L x 3.580"H x 3.580"W max 1200-9(): 7.400"L x 3.580"H x 3.580"W max 1200-1(): 7.545"L x 3.400"H x 3.400"W max 1200-7(): 7.545"L x 3.400"H x 3.400"W max 1200-5(): 7.650"L x 3.600"H x 3.600"W max 1200-6(): 7.420"L x 3.400"H x 3.400"W max | Weight: | 3.1 lbs. max |
| Part Number | Attitude Indicator Description: |
|---|---|
| 504-012X-XXX | Part Number Chart |
504-0127-902
- Attitude Indicator
| Price | Condition | Status |
|---|---|---|
| $6,936.00 | NEW OUTRIGHT | REQUEST LEAD TIME |
