Part #: 93A151-30

Model: A151B

NSN:

5895-01-122-2751

OEM:

L3Harris

Desc:

CVR Control

Part Number :
L3Harris Logo



A151B
FEATURES

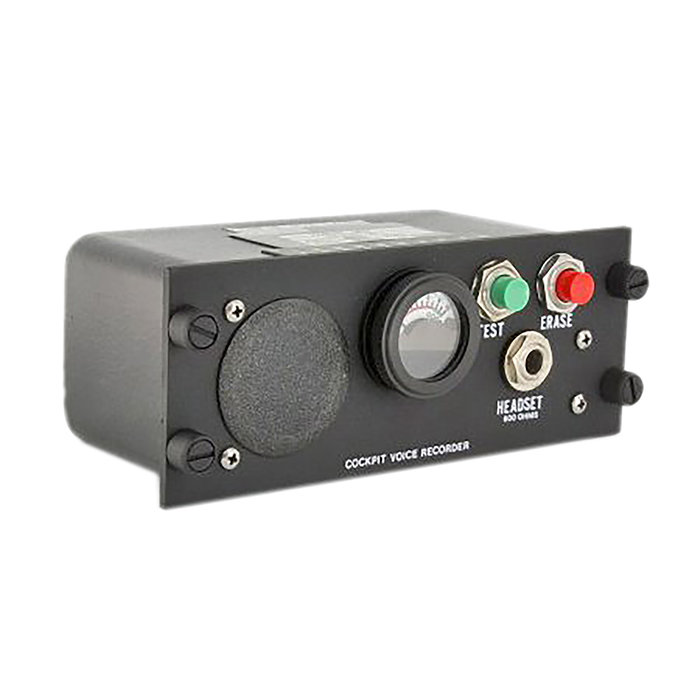

  • Cockpit Voice Recorder Control Unit for use with A100/A series CVR systems
  • Contains Microphone Preamplifier Board Assembly, headset jack, ERASE and TEST switches, and test meter
  • Test meter makes it possible to test monitor and bulk erase tape remotely
  • Designed for use with A55B remote microphone units
  • Available with black, gray, or brown panel color (see table below)
  • NO meter illumination
  • Similar to A152/B control units but DOES NOT contain internal microphone and NO meter illumination



SPECIFICATIONS
Size: ATA Panel; 5.5"W x 2.5"H x 2.5"D Weight: 1.2 lbs.
AGC: Fast reacting 30-dB range-low distortion, true ac attenuation Audio Input Impedance: 20K ohms
Audio Input Level: 3 millivolts Output Impedance: 300 ohms
Output Level: 500 millivolts Audio Gain: Pin selected 6,12,24 dB steps
DC Supply: +18 volts
Part Number: Description:
93A151-20 Gray panel color, NO internal microphone, no meter illumination,
93A151-30 Black panel color, NO internal microphone, no meter illumination
93A151-40 Brown (Boeing) panel color, NO internal microphone, no meter illumination
93A151-50 Brown (ATR-42) panel color, NO internal microphone, no meter illumination


PLEASE NOTE: THE ABOVE LISTED PART NUMBERS REFLECT THE DIFFERENT UNITS ORIGINALLY AVAILABLE BY THE MANUFACTURER AND DO NOT NECESSARILY INDICATE OR REFLECT THE CURRENT AVAILBILITY OF THESE DIFFERENT UNITS BY SOUTHEAST AEROSPACE OR THE AFTERMARKET



93A151-20
- CVR Control

NSN: 5895-01-234-5862

Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
93A151-30
- CVR Control

NSN: 5895-01-122-2751

Price Condition Status
$975.00 SV OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
