Part #: 501-1197-08
Model: AI-804U

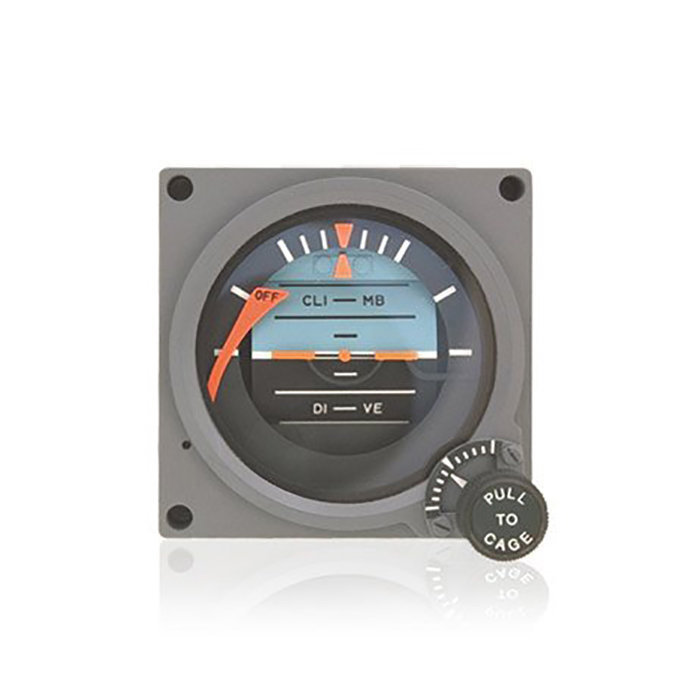

AI-804
FEATURES
- Compact self-contained standby attitude indicator
- Used in conjunction with backup battery power supply such as PS-835D
- Self-contained lateral and fore/aft acceleration compensation
- Up to nine minutes of usable attitude information after complete power loss
- 28 VDC operation
- 360° Roll, 360° Pitch with controlled precession
- Red or white internal lighting
- Manual caging for fast, reliable alignment
- Power Off warning flag
- TSO-C4c
SPECIFICATIONS
| Dimensions: | 2.40"H x 2.40"W x 6.85"L (AC Powered Units) 2.40"H x 2.40"W x 7.61"L (DC Powered Units) 2.40"H x 2.40"W x 7.73"L (Models AI-804AV, BB, BC, BE, BJ, BK, BM, CP, CV, CY, DA, DB, DD, DH, and DK) 2.40"H x 2.40"W x 8.14"L (Model AI-804CU) | Weight: | 2.7 lbs. max |
| Part Number | Product Description: |
|---|---|
| 501-1XXX-XX | Part Number Chart |
| Serial # | 1372 |
|---|---|
| Condition | OH |
| Mods | None |
| Tag Date | 02/19/19 |
| Shop | Pacific Southwest Instruments |
501-1197-08
- Attitude Gyro
NSN: 6610-01-152-2821
| Price | Condition | Status |
|---|---|---|
| $2,700.00 | OH OUTRIGHT | 1 IN STOCK |
| $1,450.00 | OH EXCHANGE | 1 IN STOCK |
Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com
What information is needed before I order an attitude gyro indicator?
When an order is placed for an attitude gyro, it is important that the following information be given:
|
Note: There is an extra charge to reset the tilt angle after purchase. |
What is panel tilt?
Panel tilt refers to the tilt angle of an aircraft's panel. The tilt angle is any deviation from the vertical axis of the control panel in level flight. When ordering an attitude gyro indicator, it is very important to know the tilt angle of the aircraft panel. Check your aircraft equipment manual or inspect the labeling on the side of your gyroscope. Installing the incorrect angle will cause the horizon to show a climb or a dive.
If panel tilt is not known, the manufacturer of the aircraft should be able to provide that information. An attitude gyro indicator can be calibrated for a panel tilt from 0-14 degrees and should be specified when ordering. A label is attached to the gyro to indicate the tilt calibration of each unit. If a newly installed attitude gyro settles more than ±
1½ degrees pitch above or below where the expected horizon should be, then panel tilt or aircraft trimming issues should be suspected.
|
|
|
Should all cage-able attitude indicators be locked when handed, transported, or stored?
No, not all and they could be damaged if you do.
Many legacy electromechnical attitude gyroscopic instruments include a caging device to hold the gimbals in place and 'force' the gyro gimbals to return to their home position. This instantly erects or resets the unit by pulling the caging knob. Some caged gyros include a cage lock mechanism, some do not. Some people believe that a cage-able gyro should always be in the locked position when handling, transportation, or storage takes place. This is not always the case.
For example, L3, manufacturers of the legacy AIM gyro product line, specifically indicate in their installation manuals and service letters that "instruments without cage locking mechanisms are designed to be shipped in an uncaged condition...using external locking devices to cage the indicator may result in damaging the caging system...". Southeast Aerospace has seen many people use external means to force a cage lock such as a spacer wedged between the extended shaft and knob. As indicated by L3 (AIM), this could very well damage the unit since you are forcing it to do something it might not have been made to do.
Most, if not all, gyro manufactures have detailed instructions within their installation and operation manuals that indicate how a specific model instrument should be handled, transported, and stored. This includes instructions on whether or not to cage lock the instrument or not. Always follow the manufacturer's instructions.
(Cage-able but does not have cage lock locking mechanism)
(Cage-able but has cage lock)
Many legacy electromechnical attitude gyroscopic instruments include a caging device to hold the gimbals in place and 'force' the gyro gimbals to return to their home position. This instantly erects or resets the unit by pulling the caging knob. Some caged gyros include a cage lock mechanism, some do not. Some people believe that a cage-able gyro should always be in the locked position when handling, transportation, or storage takes place. This is not always the case.
For example, L3, manufacturers of the legacy AIM gyro product line, specifically indicate in their installation manuals and service letters that "instruments without cage locking mechanisms are designed to be shipped in an uncaged condition...using external locking devices to cage the indicator may result in damaging the caging system...". Southeast Aerospace has seen many people use external means to force a cage lock such as a spacer wedged between the extended shaft and knob. As indicated by L3 (AIM), this could very well damage the unit since you are forcing it to do something it might not have been made to do.
Most, if not all, gyro manufactures have detailed instructions within their installation and operation manuals that indicate how a specific model instrument should be handled, transported, and stored. This includes instructions on whether or not to cage lock the instrument or not. Always follow the manufacturer's instructions.
(Cage-able but does not have cage lock locking mechanism)
(Cage-able but has cage lock)
