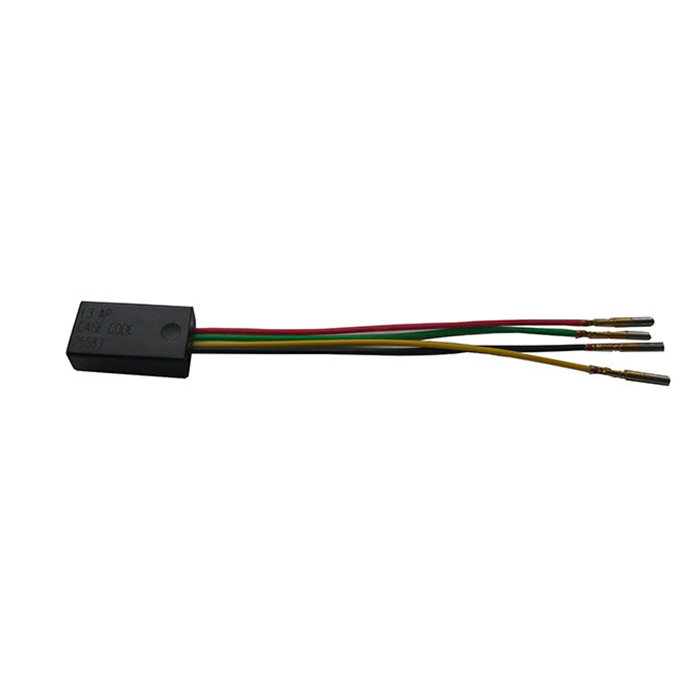

Picture of product DCM

Part #: 9230-45005-01

Model: DCM

OEM:

L3Harris

Desc:

Data Configuration Module

Part Number :

L3Harris Logo





DCM
FEATURES
  • Data Configuration Module utilized with ESI-500 Electronic Standby Instrument
  • Retains software and hardware configuration information for the ESI-500
  • Configures nominal input power for ESI-500 (14V or 28V DC)
  • Solid-state device
  • Permanently attaches to aircraft via wiring harness
  • TSOs -  C2d, C8e, C10b, C34e, C35d, C36e, C40c, C46a, C106, C113a, C179a, C201V



SPECIFICATIONS

RTCA: Env. Cat. DO-160G WEIGHT: Negligible
Altitude: 35000 ft. Service Life:  Unlimited Service Life
Part Number: Description:
9230-45005-01 Data Configuration Module



X
X
X
9230-45005-01
- Data Configuration Module (Unprogrammed)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
