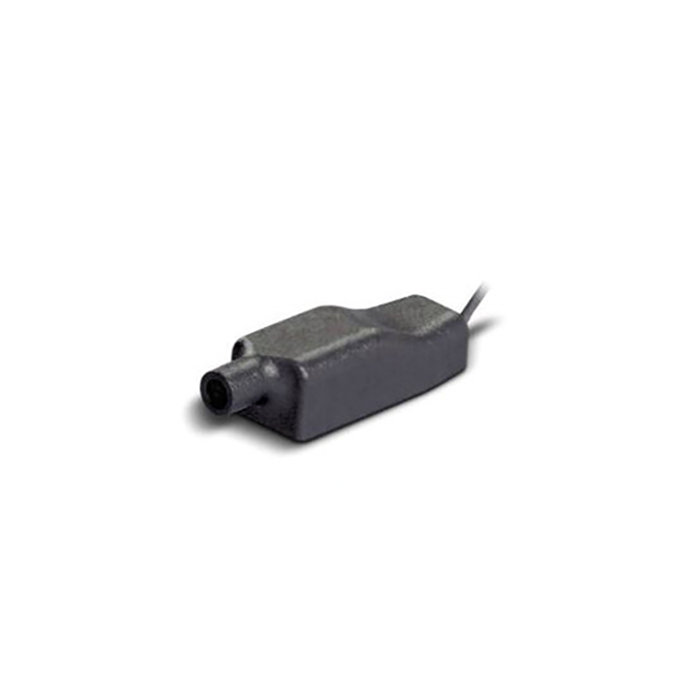

Picture of product DM58

Part #:

Model: DM58

OEM:

L3Harris

Desc:

Digital Mic, Surface Mount

Part Number :
L3Harris Logo




DM58
FEATURES
  • Preamplified digital microphone that provides an ED-112A-compliant integrated Cockpit Area Microphone (CAM) and preamplifier functionality for commercial and military aircraft
  • Micro-Electro-Mechanical Systems (MEMS) technology, improved vibration immunity for helicopter and turboprop installations, and improved cell phone/GSM signal immunity
  • Preamplifier features both analog and digital output options and features Digital Signal Processing for precise performance
  • Integrated CAM and preamplifier for CVR
  • Compliant with ED-112A specifications, MEMS technology, Improved vibration immunity for helicopter and turboprop installations, Improved cell phone / GSM signal immunity
  • ED-112A Preamplifier, Compliant with latest ED-112A, specifications, Analog and digital output options,Digital Signal Processing (DSP) for precise performance
  • User-selectable attenuation
  • Compact size
  • Mounting compatible with legacy CAM models
  • Simplified installation and wiring


SPECIFICATIONS
height: 0.9 in. (2.3 cm) width: 1.1 in. (2.8 cm)
weight: < 0.3 lb. (0.14 kg) depth: 3.5 in. (8.9 cm)
power: Requirements CVR powered or 28 VDC (option) Consumption < 1 W compatibility: FA2100, FA2200, FA2300, FA5000, SRVIVR and APR2500
interface: Interface Four-wire shielded cable pigtail, Compatability Compatible with legacy three-wire installations controls: Attenuation, 0 and 6 dB (accessible during installation only)
indicators: Microphone Peak / Overload (accessible during installation only, not visible to pilots in installed orientation) temperature: -15 °C to +70 °C
altitude: 15,000 ft. humidity: 95% RH (non-condensing)
comprehensive: DO-160G test categories upon request regulatory specs: EUROCAE MOPS ED-112A, RTCA DO-160G, RTCA DO-254, RTCA DO-178B Level D
Part Number: Description:
DM58-0048-10 Digital Mic, Surface Mount
dm58-0148-01 Digital Mic, Surface Mount





DM58-0048-10
- Digital Microphone, Surface Mount

NSN: 5965-01-661-4915

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
DM58-0148-01
- Digital Microphone, Surface Mount
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
