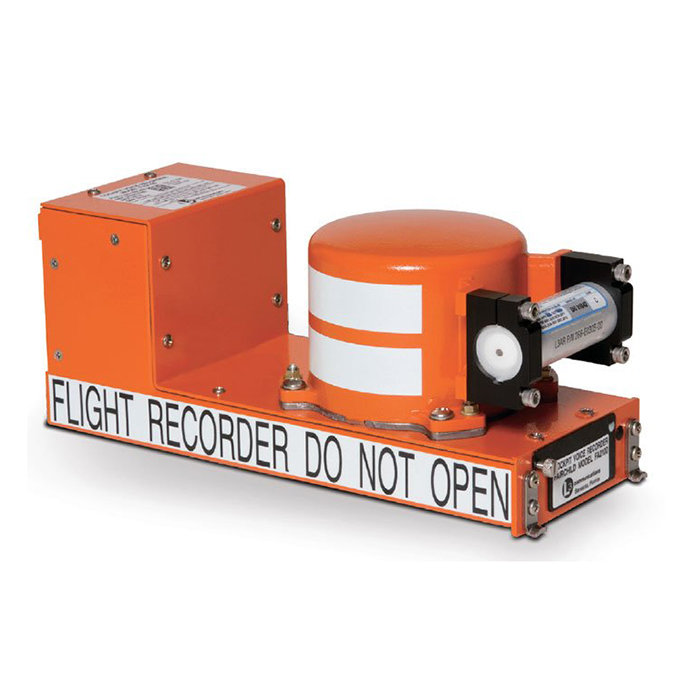

Picture of product FA2100 CVDR

Part #:

Model: FA2100 CVDR

OEM:

L3Harris

Desc:

Solid State CVDR

Part Number :
L3Harris Logo



FA2100 CVDR
FEATURES
  • Solid State Cockpit Voice & Data Recorder (CVDR)
  • Up to 2 hours of high quality recording on all four channels and a minimum of 25 hours of flight data at 64/128/256/512 wps
  • Commercial airline field experience of >50,000 hours
  • ARINC 573/717/747 (data) 557 and 757 compliant
  • ARINC 429 OMS and MIL-STD-1553 available
  • Military options (NVG, 8 Ohm)
  • Lightweight - 10 lbs with stainless steel CSMU (4.6 kg)
  • Optional titanium CSMU
  • Low power consumption - 12W AC and 10.5W DC
  • Stand-alone CVR and FDR options available
  • Control units, microphones and installation accessories are available
  • Common ground support equipment with FA2100 CVR and FDR



SPECIFICATIONS

Size: 1/2 ATR Short Dimensions: 5.5"H x 5"W x 12.6"D
Weight: 10 lbs nominal; 7.9 lbs optional Control Unit:  18VDC, 25 mA short-circuit protected power source for preamplifier
Requirements: 115 VAC, 400 Hz or 28 VDC Consumption: 12W max in AC, 10.5W max in DC
Audio: 30 min or 120 min high quality, 4 channels  Data: 25 hrs of 573/717 flight data at 64/128/256/512 wps, rotor speed and time code
Headphone Jack: 600 ohms at the control unit, optional 8 ohms Bulk Erase: Fail-safe, double electric interlock audio memory erasure completed in 5 seconds
Rear Connector: 57-pin DPXB Mating Connector: ITT Cannon DPXBMA-57-33S-0001 or equivalent
Temperature: Operating: -55° to +70°C; Non-operating: -55° to +85°C Altitude: -1000 to 55,000 ft
Vibration: DO-160C Para 8.6.2 Category C (random) Penetration: 500 lbs/10 ft/¼ inch probe
Static Crush: 5000 lbs Fire Protection: 50,000 BTU/sq ft/hr for 60 min @ 1100°C; 10 hrs @ 260°C
Impact: 3400 g, 6.5 ms, half-sine shock wave Beacon: Underwater Acoustic Beacon, 6-year battery & bracket supplied with unit
Certification: FAA TSO-C123a & C124a Regulatory Specifications: ARINC 404A, 757, Eurocae MOPS ED-55 and ED-112, ED-56A
Part Number: Description:
2100-3073-00 Discontinued -- 30 mins, 256 WPS, 25 hr flight data, TSO 123a/23a
2100-3083-00 120 mins, ARINC 717 w/64-256 WPS, 25 hr flight data, TSO 123a/124a & ED-55/56a, DO 160C
2100-3083-10 Discontinued -- EMB-170, 120 mins, ARINC 717 w/64-256 WPS, 25 hr flight data, TSO 123a/124a & ED-55/56A, DO 160C
2100-3083-50 GA, 120 mins, ARINC 717 w/64-256 WPS, 25 hr flight data, TSO 123a/124a
2100-3083-51 Light Weight GA, 120 mins, ARINC 717 w/64-256 WPS, 25 hr flight data, TSO 123a/124a, ED-56A, DO-160C, TRAYLESS MOUNT
2100-3083-93 120 min w/8 OHM, 25 hr flight data TSO 123a/124a & ED-55/-56A, DO-160C
2100-3084-00 120 min, ARINC 717 w/64-512 WPS, 25 hr flight data, TSO 123a/124a & ED-55/56A, DO 160C
2100-3084-93 120 min, 512 WPS, 8-OHM Out



2100-3073-00
- Solid State CVDR (30 Minute)

NSN: 6610-01-500-5046

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3073-01
- Solid State CVDR, Lightweight)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3073-10
- Solid State CVDR, OMS, Datalink, EMB
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3073-51
- Solid State CVDR, GA, Lightweight
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3083-00
- Solid State CVDR (120 Minute)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3083-01
- Solid State CVDR (Lightweight)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3083-10
- Solid State CVDR
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3083-50
- Solid State CVDR, GA Version
Price Condition Status
REQUEST SV OUTRIGHT REQUEST LEAD TIME
2100-3083-51
- Solid State CVDR, GA, Lightweight
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3083-93
- Solid State CVDR (8 Ohm Audio)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3084-00
- Solid State CVDR
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3084-50
- Solid State CVDR, GA Version
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3084-51
- Solid State CVDR, GA, Lightweight
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3283-10
- CVDR, EMB-170, 90 Day ULB
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-3283-50
- CVDR, 2 HR HQ, 256 WPS, 90 Day UL
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
2100-5083-51
- Solid State CVDR
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

The Underwater Locator Beacon (ULB) is usually the only part that requires any type of periodic maintenance for most Cockpit Voice Recorders (CVR) and Flight Data Recorders (FDR). This maintenance includes cleaning and testing the ULB every 2 years and replacing the battery every 6 years. It should be noted that some aircraft maintenance programs may include testing and/or bench testing of CVRs or FDRs as part of the aircraft maintenance program.
