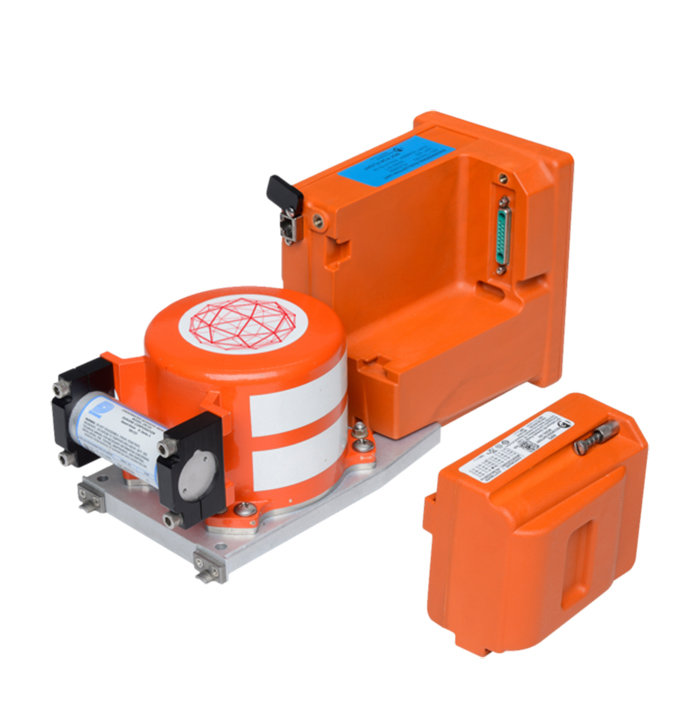

Picture of product FA5000

Part #:

Model: FA5000

OEM:

L3Harris

Desc:

CVR, DL, 38999 S2

Part Number :

L3Harris Logo



FA5000



FEATURES

  • FA5000 family of solid-state cockpit voice and data recorders are designed for high-performance aircraft and specialized applications.
  • Series includes a combination Cockpit Voice and Flight Data Recorder (CVDR), a Cockpit Voice Recorder (CVR) and a Flight Data Recorder (FDR)
  • small size and lightweight construction
  • High-performance solution for civil, commercial and military aircraft and helicopters
  • Ruggedized against both High Intensity Radiation Fields (HIRF) and lightning strikes. For military applications, the unit can be optionally outfitted for Night Vision Goggle (NVG) operations





SPECIFICATIONS
Height:  6.58 in. (167.1 mm) Width: 5.88 in. (149.35 mm)
Depth:  9.92 in. (251.97 mm) Weight: 3.7 kg
Reliability: > 50,000 hrs. MTBF, calculated POWER Requirements: 28 VDC
POWER Control Unit: 18 VDC, 25 mA short-circuit protected power source for preamplifier POWER Consumption:  8 W optional integrated 10 mins. Recorder Independent Power Supply (RIPS)
RECORDING Audio: 120 mins. high-quality 4-channel recording RECORDING DATA: 25 hrs. of 573/717 flight data at 64/128/256/512/1024 wps, rotor speed and time code; 2048 wps is optional
RECORDING Datalink: 120 mins. Williamsburg V1/ V3 CONNECTORS: Rear: 55-pin MS27497 Series II, Mating: MS27473E16F35S
Mount:  Flange PRODUCT CERTIFICATION: FAA TSO-C123b, C124b, C155a, C177 and C121a
COMPANY CERTIFICATION: ISO 9001:2008 and AS9100:2009 Rev. C Certified UNDERWATER ACOUSTIC BEACON: Beacon, six-year battery and bracket supplied with unit
Temperature: Operating -55 °C to +70 °C, Non-operating -55 °C to +85 °C Altitude: Operating -1,000 ft. to 55,000 ft.
Humidity: 0% to 95% relative Waterproofing: Drip & condensing water
Vibration: Robust and high-level short duration Penetration:  500 lb./10 ft./1⁄4-in. probe
Static Crush:  5,000 lb. Fire Protection: 50,000 BTU/ sq. ft./hour for 60 mins. at 1100 °C; 10 hrs. at 260 °C
Impact: 3,400 g, 6.5 ms, half-sine shock wave
Part Number: Description:
5001-5003-11 CVR, DL, 38999 S2
5003-3100-00 CVR, DL, 38999 S2
5003-3100-01 CVR, DL, 38999 S2
5003-5000-01 CVR, DL, 38999 S2
5003-5001-50 CVR, DL, 38999 S2
5013-3100-00 CVR, DL, 38999 S2
5013-3100-30 CVR, DL, 38999 S2
5013-5000-50 CVR, DL, 38999 S2
5013-6100-01 CVR, DL, 38999 S2
5013-6100-50 CVR, DL, 38999 S2



5001-5003-11
- CVR, DL, 38999 S2
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
5003-3100-00
- FDR, ARINC 757
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
5003-3100-01
- FDR, ARINC 757. NAND, Lightweight
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
5003-5000-01
- CVR, Datalink, NAND, Lightweight
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
5003-5001-50
- CVR, Datalink, 757A
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
5013-3100-00
- FDR, ARINC 757, 90 Day
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
5013-3100-30
- FDR, ARINC 757
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
5013-5000-30
- CVR, Datalink, 757
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
5013-5001-50
- CVR, Datalink, 757A, 90 Day
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
5013-6100-01
- CVDR, DL, 757, 90-Day ULD
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
5013-6100-50
- CVDR, Datalink, GA, 90 Day
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
