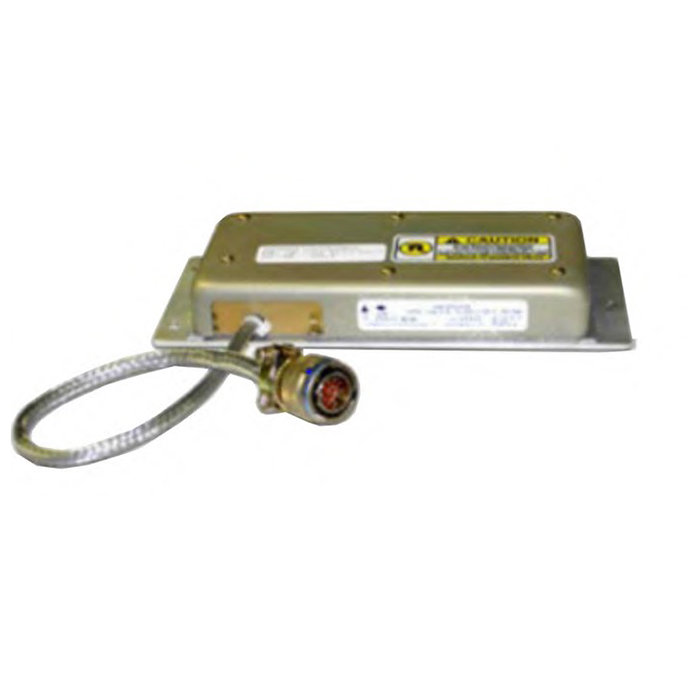

Picture of product MAG-3100
Part #: 9200-21200-01
Model: MAG-3100
Desc: Remote Mount Magnetometer
OEM: L3Harris
Sched-B: 8529906100
ECCN: 7A994
Part Number :

L3Harris Logo





FEATURES
  • Self-contained three-axis magnetometer
  • Mounts directly to the aircraft frame
  • Provides three component measurement of the earth's magnetic field
  • Information is sent via RS-422 serial bus to a reference system that computes the magnetic heading of the aircraft
  • Power-On Self-Test Mode begins operation as soon as aircraft power followed by Normal Operational Mode
  • Self-test requires less than 5 seconds to complete and monitors for faults in power supplies, internal communications & out of tolerance conditions







SPECIFICATIONS

Size: 7.265”L x 3.15”W x 1.30”D Weight: 0.78 lbs.
Power: +28VDC Environmental: DO-160D
Temperature: -55 to +70C Altitude: 55000 ft.
TSO: C6d ETSO: C6d



Part Number: Description:
9200-21200-01 Remote Mount Magnetometer



















9200-21200-01
- Remote Mount Magnetometer
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
