Picture of product S056

Part #: S056-0048-00

Model: S056

NSN:

5965-01-520-9623

OEM:

L3Harris

Part Number :



L3Harris Logo

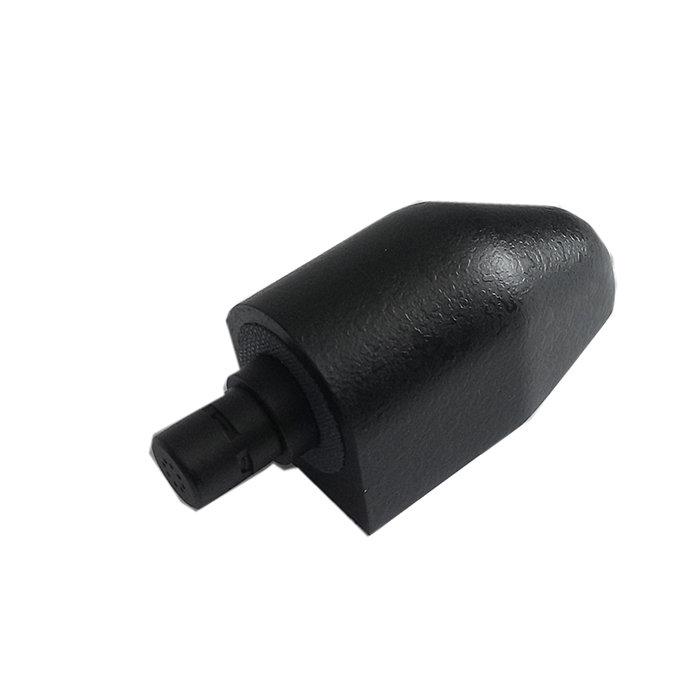

S056 Remote Microphone

FEATURES

  • The Model S056 Microphone is required with the S161 and S261 Control Units and with the S160 Preamplifier Module



SPECIFICATIONS

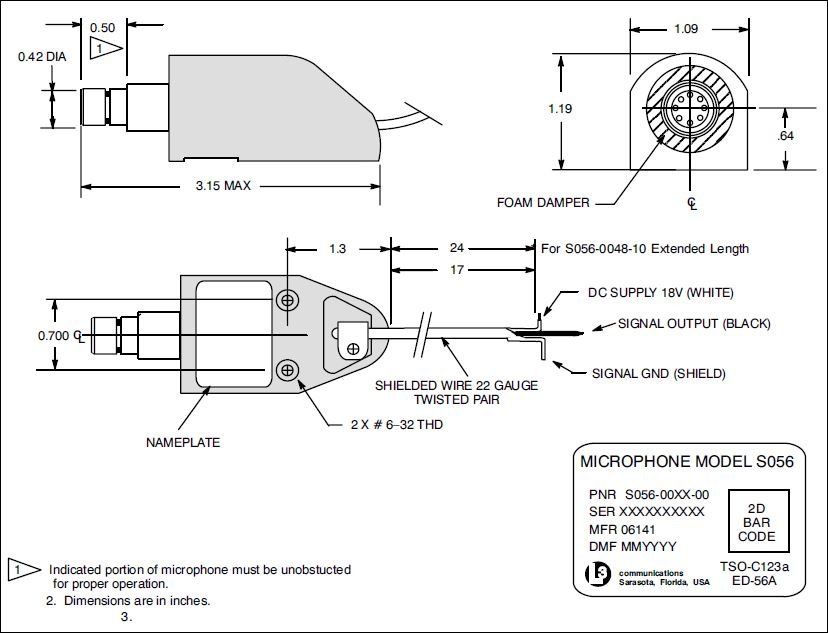

minimum cable length: 17 inches, (Black No. 37038) 70" special feature: Cardioid Polar Response
OUTPUT LEVEL:  (155 mV nom ±4dB AT 1KHz , 94dB AT 1 Meter  cable: Teflonn Insulated Shielded 2 cond. #22 gage standard, 1 white, 1 black, with a white outer jacket
color: Black special feature: Cardioid Polar Response
mIC BIAS: + 18 VDC Input  Pigtail: (S056-0048-00)-Extended Length 24" Pigtail min.

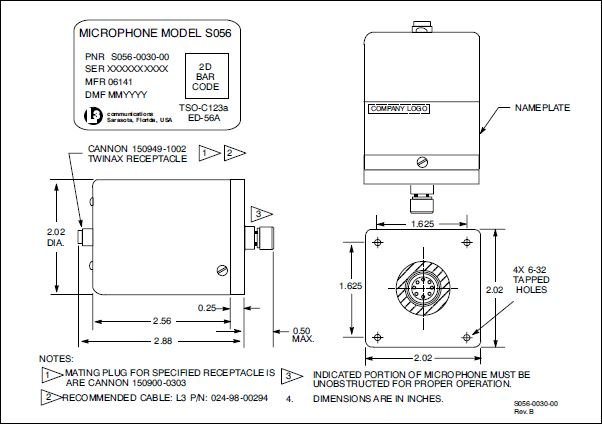

S056 Microphone Module

cOLOR: Brown (Boeing) weight: 0.4 lbs.
height: 2.02 inches  wiidth: 2.02 inches
tApped holes: 4x 6-32 twinax receptacle: Cannon 150949-1002



Part Number:  Description:
s056-0030-00 Surface-Mount Microphone Module Large
S056-0047-00 Remote Microphone, Gray-No. 36118
s056-0048-00 Remote Microphone, Black-No. 37038
s056-0048-10 Remote Microphone, Black-No. 37038 Extened Length
s056-0049-00 Remote Microphone, Brown ATR-42-No. 20059
s056-0050-00 Remote Microphone, Boeing Brown-No. 36116
s055-0051-00 Remote Microphone, Ember Gray

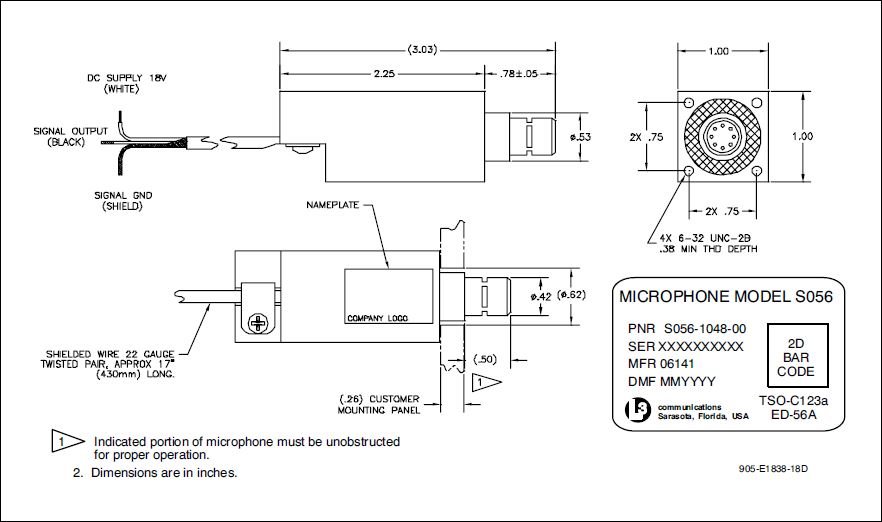

s056-1048-00 Remote Microphone, Black Panel-Mount Microphone Small



Serial # 000557765
Condition SVC
Mods NONE
Tag Date 07/27/23
Shop Southeast Aerospace Inc.
Warranty 6 Months
Serial # 100009318
Condition NEW
Mods -
Tag Date 07/19/23
Shop Textron Aviation
Warranty 1 Year
Serial # 100009319
Condition NEW
Mods -
Tag Date 07/19/23
Shop Textron Aviation
Warranty 1 Year
Serial # 100009321
Condition NEW
Mods -
Tag Date 07/19/23
Shop Textron Aviation
Warranty 1 Year
Serial # 100009598
Condition NEW
Mods -
Tag Date 07/19/23
Shop Textron Aviation
Warranty 1 Year
S056-0048-00
- CVR Microphone w/ Preamp, Black
Price Condition Status
$3,250.00 NEW OUTRIGHT 4 IN STOCK
$2,450.00 SV OUTRIGHT 1 IN STOCK
S056-0030-00
- CVR Microphone, Boeing Brown

NSN: 5965-01-520-9623

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S056-0047-00
- CVR Microphone w/ Preamp, Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S056-0048-10
- CVR Microphone, Ext. Length

NSN: 5965-01-593-9931

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S056-0048-95
- CVR Microphone, Ext. Length, Windscreen
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S056-0049-00
- CVR Microphone w/ Preamp, ATR Brown
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S056-0050-00
- CVR Micrphone w/ Preamp, Boeing Brown
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S056-0051-00
- Microphone, Remote Assembly, Embraer Gray
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S056-1048-00
- CVR Microphone w/ Preamp, Pigtail

NSN: 5965-01-535-4571

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
S056-1948-15
- Microphone, Panel Mount, Side CBL
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
