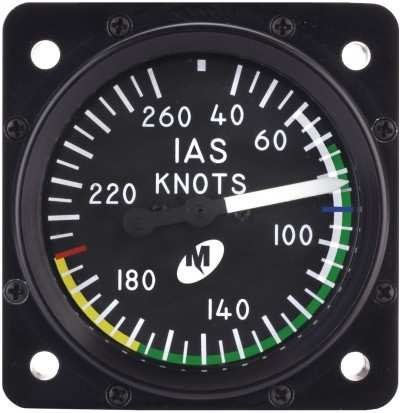

Picture of product MD25

Part #:

Model: MD25

OEM:

Mid-Continent

Desc:

2" Airspeed Indicator, 40-260 knots

Part Number :


MD25
FEATURES
  • 2-inch Airspeed Indicator
  • Offered in multiple ranges: 160, 200, 260, 300, 350 and 400 knots
  • Customizable range markings can be added to match aircraft operating handbook
  • Can be used as standby or primary indicator
  • Combine with a Mid-Continent MD15 Altimeter and 4200 Attitude Indicator for a complete standby package designed for tight panel applications
  • Approved to FAA TSO-C2d
  • Integral long life 5, 14 or 28 volt LED lighting
  • Anti-reflective glass enhances visibility and reduces pilot fatigue
  • Rear-mounted in standard 2 1/4” cutouts horizontally, vertically or individually



SPECIFICATIONS
Dimensions: 2.4"W x 2.4"H x 3.9"D Weight: 0.6 lbs
Certification: FAA TSO-C2d RTCA DO-160F Lighting: Field replaceable light tray available for 5, 14, & 28VDC input with incandescent bulbs or white LEDs
Color: Case: Black Mounting: Rear mount
Altitude: -15,000 to +50,000 feet Operating Temperature: -20°C to +55°C
Connections: 1/8-27 NPT per MIL-P-7105 Environmental:  TCA DO-160F Env. Cat. (D1)CAB[(SM)(UG)]XWXSFSYXXXXXXXXX



Part Number Airspeed indicator Description:
MD25-160 20-160 knots, lighted
MD25-200 40-200 knots, lighted
MD25-260 40-260 knots, lighted
MD25-300 40-300 knots, lighted
MD25-400 40-400 knots, lighted



MD25-160
- 2" Airspeed Indicator, 20-160 knots
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
MD25-200
- 2" Airspeed Indicator, 40-200 knots (Lighted)

NSN: 6610-01-604-1330

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
MD25-300
- 2" Airspeed Indicator, 40-300 knots

NSN: 6610-01-665-1542

Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
MD25-350
- 2" Airspeed Indicator, 40-350 knots
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
MD25-400
- 2" Airspeed Indicator, 40-400 knots
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST OH EXCHANGE REQUEST LEAD TIME
