Part #:

Model: TA102

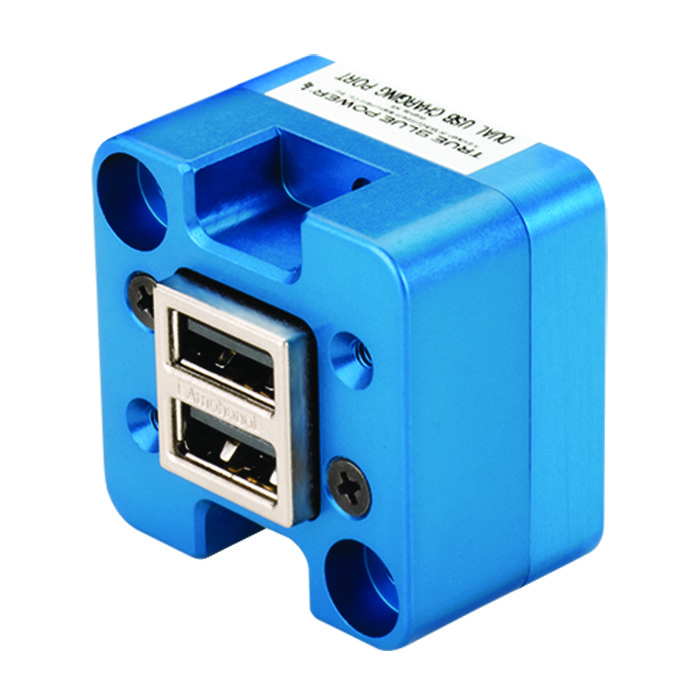

Mid-Continent - Dual USB Charging Port (Non-Lighted)
product image
Part Number :


TA102
FEATURES
  • TSO-certified Dual USB Charging Port
  • Simultaneously provides 2.1 amps per charging port to any consumer product requiring a USB interface
  • Designed to supply the electric current needed to charge any standard or high-power device with a USB interface
  • Charge one or two products simultaneously at full power
  • Protects itself and the charging device from short-circuit, power surges and over-current potential
  • Units available in lighted and non-lighted versions
  • 2.1 amps per port output current
  • 10-32 VDC input voltage
  • 5 VDC ± 0.25 per port output voltage
  • Panel or cabin mount
  • Mounting Kit options: Instrument Mount Kit, P/N 9017947; Front Mount Kit, P/N 9017946; Circular Rear Mount Kit, P/N 9017945



SPECIFICATIONS
Input voltage: 10 - 32 VDC input current: 24 W max; 1.7 amps at 14 VDC / 0.85 amps at 28 VDC
output voltage: 5 VDC ± 0.25 per port output current: 2.1 amps per port
weight: 0.2 lbs dimensions: 1.5" W x 1.5" H x 0.96" D
Charging port type: USB Standard A Mating Connector Kit: MCI P/N 9017960 (included)
Mounting:   Panel or cabin; front or rear mount Certification: FAA TSO C71, EASA ETSO C71, RTCA DO-160G



Part Number Dual usb charging port Description:
6430102-1 Rear Power Input, Non-Lighted
6430102-2 Bottom Power Input, Non-Lighted
6430102-3 Rear Power Input, Lighted
6430102-4 Bottom Power Input, Lighted



X
X
X
6430102-1
- Dual USB Charging Port (Non-Lighted)

NSN: 5935-01-654-8490

Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
6430102-2
- Dual USB Charging Port (Non-Lighted)

NSN: 5935-01-658-2276

Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
6430102-3
- Dual USB Charging Port (Lighted)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
6430102-4
- Dual USB Charging Port (Lighted)
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT CALL OR RFQ
