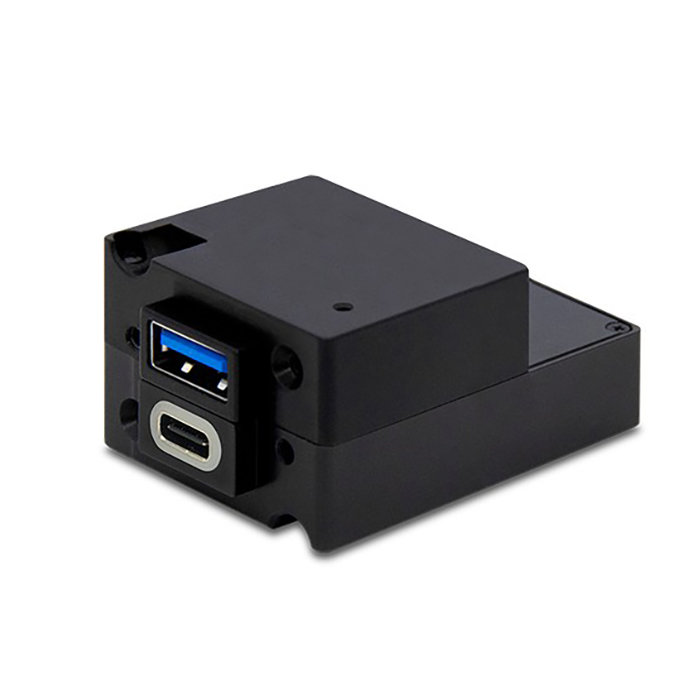

Picture of product TA360-CA
Part #: 6430360-21
Model: TA360-CA
Desc: USB Charging Port
OEM: Mid-Continent
Part Number :





FEATURES

  • Dual USB-A / USB-C PD charger with rear connector
  • MAX Power USB charger is TSO certified
  • Simultaneously provides 3.0 amps per charging port
  • (6430360-21) Simultaneously provides 3.0 amps (USB-A) and 5.0 amps (USB-C PD)
  • 22 – 32 VDC input voltage
  • Delivers up to 60 watts of power per PD port
  • Dual, USB-C PD / USB-A connectors
  • Compatible with USB-C PD, traditional USB-C and USB-A devices
  • Charge two devices simultaneously at maximum power
  • Short circuit, power surges, overload and over temperature protection
  • In-seat, cabin, cockpit and galley applications



SPECIFICATIONS

Input Voltage: 22 – 32 VDC Input Power: USB-C PD; 66 W per port (maximum), USB-A; 18 W per port (maximum)
Weight: 1.8 ounces (51 grams) Dimensions: 1.5″W x 1.03″H x 2.0″D
Output Voltage: USB-C PD; 5 – 20 VDC per port (variable), USB-A; 5 VDC ± 0.25 per port Output Power: USB-C PD; 60 W per port (maximum), USB-A; 15 W per port, (6430360-21) USB-C PD (100W at 5A) / USB-A (15W at 3A), 22–32 VDC in, Starlink Mini Compatible, Rear connector
Output Current: 3.0 amps per port usb connector: Dual USB-C PD / USB-A configuration
USB Connector: Dual USB-C PD / USB-A configuration Mating Connector Kit: MCI P/N 9017960 (included)
Case: Anodized aluminum, black Installation: In-seat, cabin, cockpit and galley
Mounting: Front or rear; faceplates and adapter plates (optional) Certification: FAA TSO C71, EASA ETSO C71, RTCA DO-160G



Part Number: Description:
6430360-1 Max USB Charger
6430360-21 Max USB Charger





6430360-21
- USB Charging Port (Max Power)
Price Condition Status
$695.00 NEW OUTRIGHT REQUEST LEAD TIME
