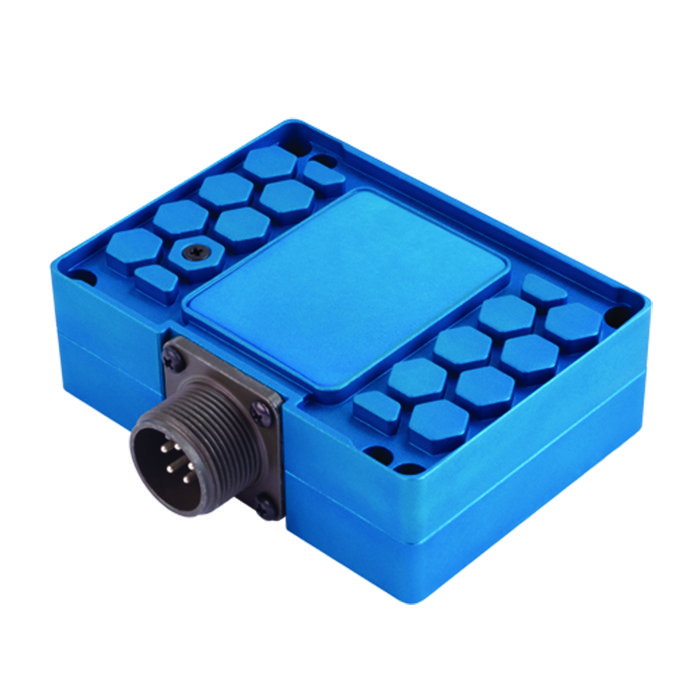

Picture of product TC120

Part #: 6430120-2

Model: TC120

NSN:

6130-01-670-7402

OEM:

Mid-Continent

Desc:

TC120 DC to DC Converter

Part Number :





TC120



FEATURES

  • Supplies 120 watts of DC power
  • Adjustable 5 – 18 VDC output
  • Lightweight — 0.65 lbs
  • Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
  • 95% efficient
  • Remote On/Off (optional)
  • No cooling required
  • Can be mounted in the floor, cabin wall or outside the pressure vessel
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty
  • FAA TSO Certified



SPECIFICATIONS
INPUT VOLTAGE: 22 – 32 VDC INPUT CURRENT: 5.0 A Nominal
OUTPUT VOLTAGE: 5 – 18 VDC adjustable OUTPUT POWER: 120 watts
REGULATIONS: 1% load, 2% temperature WEIGHT: 0.65 lbs (0.29 kg)
ALTITUDE: 55,000 ft MATING Connector: 6430120-1, -2, MCI P/N 9018651 (included)
CASE: Anodized aluminum, blue CERTIFICATION: FAA TSO C71 certified, RTCA DO-160G qualified
Part Number: Description:
6430120-1 DC to DC Converter
6430120-2 DC to DC Converter



Serial # A24-11665
Condition NEW
Mods 1
Tag Date 03/01/24
Shop Mid-Continent Inst. & Avionics
Warranty 1 Year
6430120-1
- 24-32 VDC in, 5-18 VDC out (9A nominal), 120 watts

NSN: 6130-01-670-7402

Price Condition Status
REQUEST NEW OUTRIGHT 2 IN STOCK
6430120-2
- 24-32 VDC in, 5-18 VDC out (9A nominal), 120 watts
Price Condition Status
$675.00 NEW OUTRIGHT 1 IN STOCK
