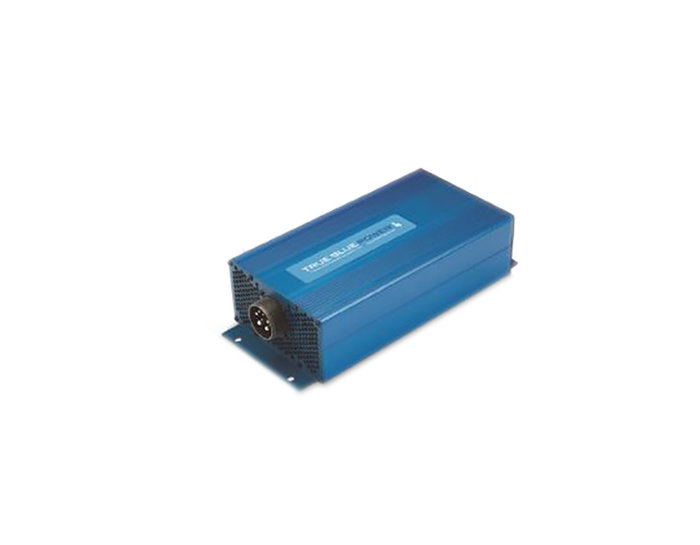

product image

Part #: 6432001-1

Model: TC2000

OEM:

Mid-Continent

Part Number :



Mid-Continent Instruments and Avionics



TC2000



FEATURES

  • Supplies 2,000 watts of 28-volt DC power
  • Lightweight — 9.9 lbs
  • Input transient, temperature monitoring, short circuit and overload protection (up to 110% of rated load without damage)
  • 88 – 90% efficient
  • Remote On/Off
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty



SPECIFICATIONS
Weight: 9.9 lbs [4,49 kg] Dimensions: (not including connector mate) 14.00 inches x 6.32 inches x 3.46 inches (LxWxH) [35,5 x 16,1 x 8,8 cm]
Temperature: -55°C to +70°C (-67°F to + 158°F) mating Connector r (and cable clamp): MCI P/N 9018993-1 and 9018550-2
Mounting: Base mount – orientation not critical Altitude: 35,000 feet
Efficiency: 88% nominal Output Voltage: 28VDC ± 0.5 VDC
Input Voltage: Aircraft: 115VAC nominal, 360-800 Hz. AC Mains: 115VAC or 230VAC, 47 to 65 Hz. (Note Output Power: 2000 watts (28VDC @ 71 Amps rated)
Input Current (full load): 22 Amps nominal; 28 Amps max Input Current (unit off): 2 Amps
Certification: FAA TSO-C71 Environmental Qualification: RTCA DO-160G Environmental Category
Part Number: Description:
6432001-1 Static Electrical Power Converter



6432001-1
- 115 VAC in, 28 VDC out, 2,000 watts
Price Condition Status
$10,700.00 NEW OUTRIGHT REQUEST LEAD TIME
