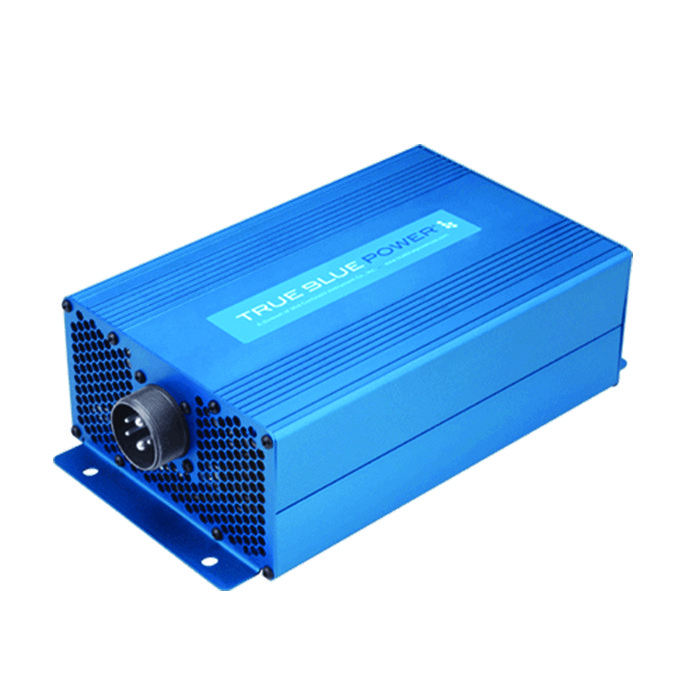

product image

Part #: 6431200-1

Model: TI1200

OEM:

Mid-Continent

Desc:

Static Inverter

Part Number :


TI1200



FEATURES

  • Supplies 1,200 watts of power to a variety of cabin accessories, galley equipment, avionics, entertainment and aircraft systems
  • Ideal for use in special mission and VIP cabin configurations
  • Compact design — smaller than competing inverters
  • Lightweight — 7.3 lbs
  • 88% efficient
  • Input transient, overload and short-circuit protection — up to 150% of rated load without damage
  • Remote On/Off
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty
  • FAA TSO certified



SPECIFICATIONS
Input Current: 60A at 28 VDC input input voltage: 20 – 36 VDC
output power: 1,200 VA weight: 7.3 lbs (3.31 kg)
Altitude: 55,000 ft Temperature: -67°F to +158°F (-55°C to +70°C)
Output Frequency: 60 Hz ± 0.1% mating connector: MS3106A24-12S , MS3057-16A (cable clamp / backshell)
Integral Cooling: Dual, electronically-controlled brushless fans Output Waveform: Single phase, true sine wave, < 3% total harmonic distortion
Part Number: Description:
ti1200 Static Inverter



FAA TSO C179a certified EASA ETSO C179a certified ANAC TSO C179a certified Part 23 AML STC certified RTCA/DO-160F qualified RTCA/DO-311 qualified
6431200-1
- Static Inverter (1200VA, 115VAC)
Price Condition Status
$5,350.00 NEW OUTRIGHT REQUEST LEAD TIME
