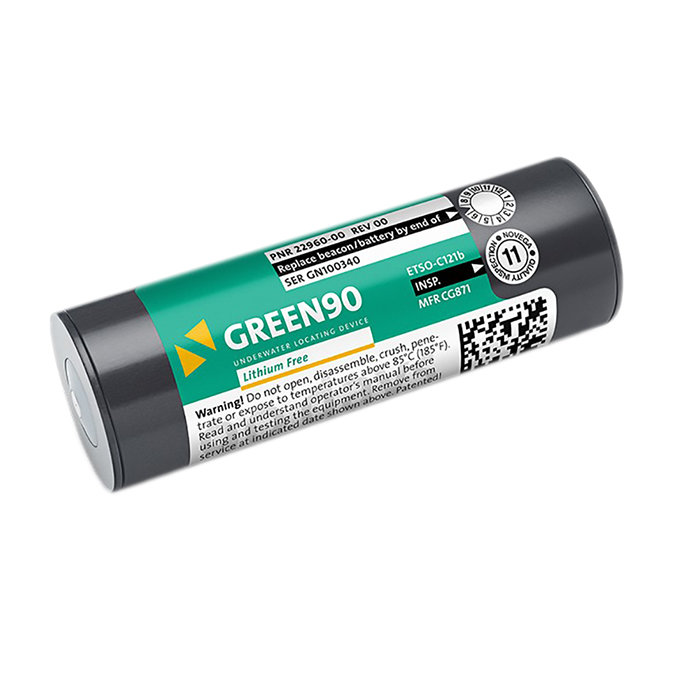

Picture of product GREEN90

Part #: 22960-00

Model: GREEN90

OEM:

Novega

Desc:

Underwater Locator Beacon (90 Day)

Part Number :

NOVEGA

GREEN90
FEATURES

  • Lithium-Free Beacon; no transport restrictions for hazmat
  • Frequency 37.5kHz +/-1kHz
  • Minimum operating life 90 days
  • Detectable in deep sea down to more than 20,000ft (6,096m)
  • C-cell Housing/Design
  • 3.0 nominal Electric Voltage



SPECIFICATIONS

WEIGHT: 6.84 oz (194 g) diameter: 1.300 inches (33 mm)
overall length: 3.920 inches (100 mm) operating range: Operating/Transport -55°C (-67°F)to + 85°C(185°F), Operating Temperature -2° (+28°F) to -38°C (+100°F)
Installation Length: 3.845 inches (98 mm) Overall Length: 3.920 inches (100 mm)
Housing/Design: C-cell Chemistry: Zn-MnO2 (Alkaline
Electrical Voltage: 3.0 Volt nom Actuation: Fresh- and salt water at all depth from 0.15 m (0.5 ft) to 6096 m (20 000 ft) within 4 h     (SAE AS8045A § 4.1)
Acoustic Output: -initial  min. 160.5 dB vs 1 µPa at 1 metre (106 N/m), – after 90 days min. 157 dB vs 1 µPa at 1 metre (70 N/m) Operating Temperature:    –2°C (+28°F) to +38°C (+100°F)
Pulse Length: 9.0 ms minimum Operating Frequency: 37.5 ± 1 kHz
Pulse Repetition Rate: 0.9 pulse/s Radiation Pattern: min. 80% of a spherical pattern
Operating Life: 90 days minimum Initial Operation: 106 N/m2 (1060 dyne/cm2) r.m.s. pressure normalized to 1 metre range, that is, at a level of 160.5 dB vs 1 μPa at 1 metre
Continuous Operation: – Immediately after 90 70 N/m2 (700 dyne/cm2) r.m.s. days pressure normalized at 1 metre range, that is, at a level of 157 dB vs 1 μPa at 1 metre
Part Number: Description:
22960-00 Underwater Locator Beacon,  90 Day




Serial # GN105824
Condition NEW
Mods -
Tag Date 03/19/24
Shop Novega Produktionssysteme GmbH
Warranty 1 Year
Serial # GN105825
Condition NEW
Mods -
Tag Date 03/19/24
Shop Novega Produktionssysteme GmbH
Warranty 1 Year
Serial # GN105826
Condition NEW
Mods -
Tag Date 03/19/24
Shop Novega Produktionssysteme GmbH
Warranty 1 Year
Serial # GN105827
Condition NEW
Mods -
Tag Date 03/19/24
Shop Novega Produktionssysteme GmbH
Warranty 1 Year
22960-00
- Underwater Locator Beacon (90 Day)
Price Condition Status
$1,295.00 NEW OUTRIGHT 4 IN STOCK
