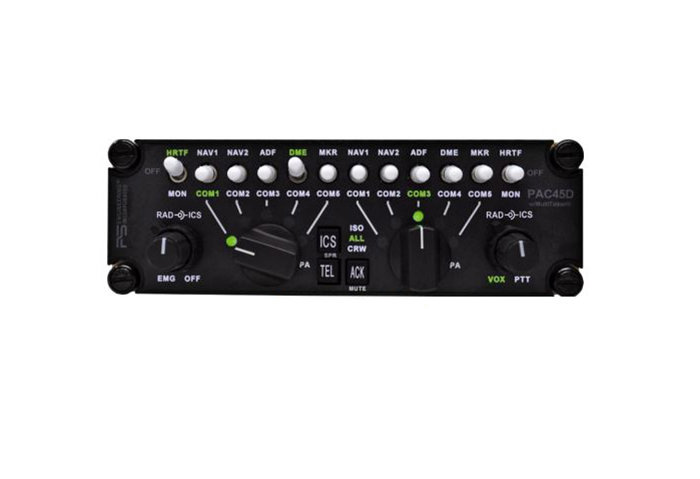

CTL45D DUAL CONTROL HEAD

FEATURES

  • Supports five (5) Com radio interfaces
  • MultiTalker True Dimensional 3D Sound – 9-Field selectable locations
  • One Observer control head via RS422
  • Seven (7) place IntelliVox intercom
  • 3 audio alerts, discrete high or low trigger
  • Bluetooth interface for wireless phone and music
  • PIC – Pilot In Command override
  • Fully DSP digital audio controller
  • Comm Monitor function (primary mutes offside comms)
  • Pilot “hands on stick/yoke” comm swap mode (foot switch)
  • Pilot “hands on stick/yoke” intercom ICS selection (foot switch)
  • Four unswitched inputs with independent volume controls
  • Dual CVR outs or single CVR with low level speaker output
  • Pilot (Com1, Nav1, Unsw1, Alerts) & copilot (Com 2) failsafe
  • NVG optional w/backlight leveling adjustments
  • Custom configurable pilot right or left seat
  • Master Radio volume for each side
  • Stuck PTT indicator with 35 second
  • Bluetooth & Hardwire stereo music
  • RXI – Radio Traffic Active Indicator led n Crew CALL function when observer
  • Pilot isolation, Crew isolation and 4 transmit locations
  • Offside Radio Audio Selectable
  • Custom configurable decals
  • AMS44 pin compatible
  • 2- Year PS Engineering's Pro-Support Warranty



SPECIFICATION

MUSIC FREQ RESPONSE 3 dB 20 Hz – 16 kHz audio selector/ intercom: C50c, Class A
operating temperature range: Operating: -20°C to +55°CShort Term Operating:-40° C to +70°CSurvival:-55° C to +85°C , Hub: -55º C to +70ºC VOLTAGE: 18 to 33 VDC
DIMENSIONS: Height: 1.9 in. (4.8 cm) Width: 5.75 in. (14.6 cm) Depth behind panel (PAC45): 7.38 in. (18.75 cm) including connectors MAXIMUM CURRENT:  0.5 Amp (Externally protected by a 1 Amp circuit breaker)
ALTITUDE:  Up to 55,000 feet in a non-pressurized area of the cockpit input isolation:  -60 dB (min.)
UNIT weight:  2.0 lb. (0.90 kg) AUDIO SELECTOR PANEL Impedance: 510 Ω
unswitched inputs: transmitter selectIONS: 7 (COM 1, COM 2, COM 3, COM 4, COM 5, COM 6 plus Telephone) (Can be relabled as desired)
headphone impedance: 150 – 1000 Ω headphone output: 200 mW into 150 Ω each side (left and right) headset, no clipping <.5% THD typical
speaker impedance:  4 Ω microphone impedance: 150 - 600 Ω
intercom position: Up to 8 places (with individual IntelliVOX  circuits) music inputs:  1 (Stereo) plus Bluetooth
music muting: -30 dB "Soft Mute" when Com or intercom active distortion: <1% THD @ 200 mW into 150 Ω
BLUETOOTH RADIO: Class 3, FCC ID QOQWT32AI SPEAKER OUTPUT (-0002 & -0102 ONLY): 3 Vrms Maximum
mUSIC FREQ. RESPONSE 3 DB:  300 Hz - 6000 Hz ALERT POWER LIGHTING: CTL45 only: 150 mA < 5mA
environmental: A1D1BABSXXXXXXZBABZATTMA3J33XXA applicable documents: RTCA/DO-214A,  RTCA/DO-160G,  RTCA/DO-178C





Part Number: DESCRIPTION:
050-345-0000 Dual Control Head with Individual Transmit Switches for Pilots
