Part #:

Model: HSA13

PS Engineering

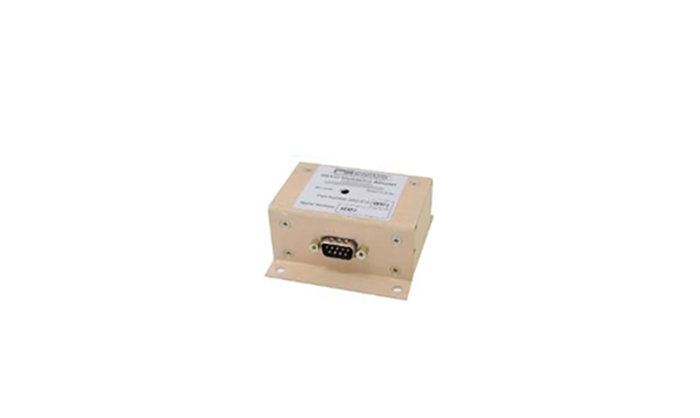

product image
Part Number :


HSA13



FEATURES

  • HSA13 is an accessory device designed to provide impedance matching between a general aviation (150Ω) audio panel or radio, and a low-impedance (5 Ω) microphone and or 8Ω headphone
  • This unit is a remote-mounted device designed to match low impedance headset/helmet with high impedance systems
  • The HSA13 Headset Adapter is FAA authorized under TSO C139A (Audio Amplifiers)



SPECIFICATIONS

Dimensions:  Height: 1.35 in. Length: 3.00 in Width: 3.05 in. (w/ mounting flanges) Weight (connector): 0.25 lbs. (0.23 kg)
operating Temperature: -20°C to 55°C, Short term: -40°C to +70°C, Survival: -55º C to +85ºC Cold soak to –40˚C Altitude: Up to 50,000 feet in an unpressurized area of the aircraft
Voltage: Provided by Microphone Bias MICROPHONE INPUT IMPEDANCE: 4-8 Ω
AUDIO Frequency RESPONSE, 3DB: 300 Hz - 6000 Hz AUDIO oUTPUT IMPEDANCE:  150 Ω
HEADPHONE INPUT (-0100 ONLY):  150 Ω HEADPHONE OUTPUT (-0100 ONLY):  8 Ω
Part Number Marker Beacon Receiver:
050-213-0001 Headset Impedance Adapter
050-213-0100 Headset Impedance Adapter



050-213-0001
- Military Impedence Adapter (Low t o High Mic)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
050-213-0100
- HMilitary Impedence Adapter (Low to High Headset)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
