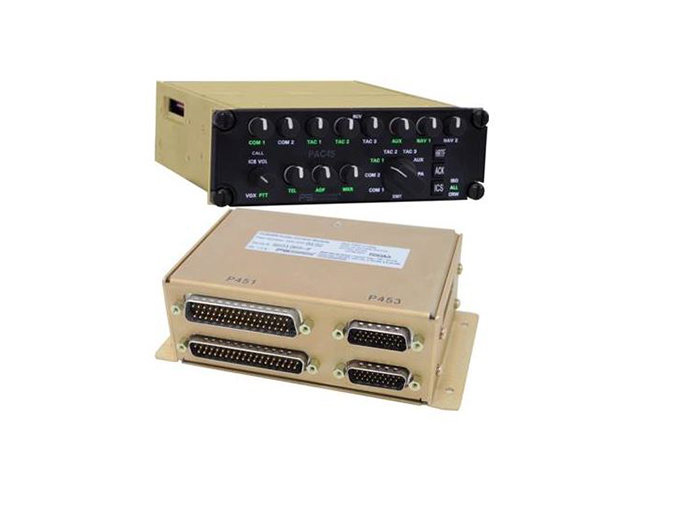

Picture of product PAC45

Part #:

Model: PAC45

OEM:

PS Engineering

Desc:

Special Mission Audio System

Part Number :


PAC45

FEATURES

  • Up to six (6) Com radio interfaces
  • MultiTalker™ True Dimensional Sound –9 selectable locations

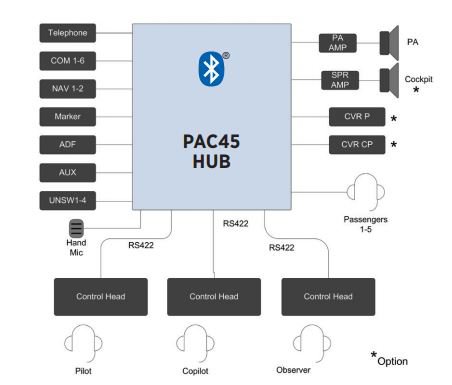

  • Up to 3 individual control heads via RS-422
  • Seven-place intercom with Auto VOX and PTT-ICS VOX-
  • Custom legends are quick and easy to order for professional tailored form and function
  • flightmate® field recordable audio alerts system
  • Satellite Radio interface with full duplex phone
  • No computers or custom software programs required
  • Bluetooth interface for wireless phone and music
  • Six (6) switched inputs (Note: AUX switches 3 inputs)
  • Individual radio volume controls with pop-out switches
  • 1.88” DZUS mount connector compatible with industry standard
  • Night Vision compliant to ANVIS III
  • Remote ICS (ISO/All/Crew) Control
  • Public Address Output
  • SWAP – only swaps the Coms you’re monitoring
  • Radio Receive Indicator (RXI)
  • Intercom call feature
  • High noise configuration
  • Reversionary mode
SPECIFICATIONS
AUDIO SELECTOR/INTERCOM: FAA TSO C139a APPLICABLE DOCUMENTS: RTCA/DO-214A, RTCA/DO-160G RTCA/DO-178C, DO-254
VOLTAGE: 28 VDC Systems 20.5 VDC - 32.2 VDC MAXIMUM CURRENT: 0.5 Amp (Externally protected by a 1A pull-type breaker)
OPERATING TEMPERATURE: Range Hub, -55º C to +70ºC CONTROL HEAD: -20º C to +55ºC
AUDIO SELECTOR PANEL:  input impedance, 510 Ω INTERCOM POSITIONS:  7 places (with individual IntelliVox® circuits)
MICROPHONE IMPEDANCE: 150 Ω - 600 Ω BLUETOOTH: Radio Music and cell phone
Input ISOLATION: -60 dB (min.) TRANSMITTER SELECTION: 6 (COM 1, COM 2, COM 3, COM 4, COM 5, COM 6)
UNSWITCHED INPUTS:  4 HEADPHONE OUTPUT:  200 mW into 150 Ω each side (left and right) headset, no clipping <.5% THD typical
SWITCHED RECEIVER INPUTS: 13 (COM 1 – COM 6, TEL, NAV 1, NAV 2, Marker, AUX)  HEADPHONE Impendence: 150 Ω - 600 Ω
Dimensions: 1.88" (3.3 cm) Width: 5.75" (15.9 cm) Depth behind panel:  5.5" (18.16 cm) Weight:  2.0 lb. (0.9kg)
MUSIC INPUTS  1 (wired) plus Bluetooth MUSIC MUTING: >-30 dB “Soft Mute” when Com or intercom active
MIC FREQUENCY RESPONCE:  3 dB: 300 Hz – 6000 Hz MUSIC FREQUENCY RESPONCE: 3 dB: 20 Hz – 16 kHz
DISTORTION: <1% THD @ 200 mW into 150 Ω



pac45

050-045-0001
- Special Mission Audio Panel (Dual CVR)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
050-045-0002
- Special Mission Audio Panel (Spkr Out, Single CVR)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
050-045-0007
- Special Mission Audio System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
050-045-6001
- Special Mission Audio Panel (NVG)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
050-045-6002
- Special Mission Audio Panel (NVG, Spkr Out, CVR)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
050-045-6007
- Special Mission Audio System (NVG)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
