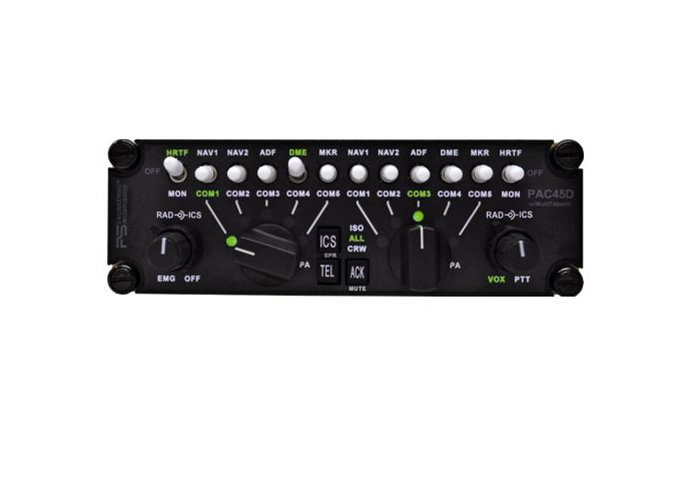

Model: PAC45D

PS Engineering
product image
Part Number :

PAC45D

FEATURES

  • Panel-mounted Audio Control System with dual CVR outputs
  • Includes integrated control head and Audio Hub
  • Standard bezel label
  • Comes with the install kit P/N 250-045-0100, qty. 2, 26 pin connectors
  • Supports five (5) Com radio interfaces
  • MultiTalker® True Dimensional
  • One Observer control head via RS422
  • Seven (7) place IntelliVox intercom
  • 3 audio alerts, discrete high or low trigger
  • Bluetooth interface for wireless phone and music
  • PIC – Pilot In Command override
  • Fully DSP digital audio controller
  • Comm Monitor function (primary mutes offside comms)
  • Pilot “hands on stick/yoke” Com swap mode (foot switch)
  • Pilot “hands on stick/yoke” ICS selection (foot switch)
  • Four unswitched inputs with independent volume controls
  • Dual CVR outs or single CVR with low level speaker output
  • Failsafe - Pilot (Com1/Nav1/Unsw1/Alerts) CP Com 2
  • NVG optional w/backlight leveling adjustments
  • Custom configurable pilot right or left seat
  • Master Radio volume for each side
  • Stuck PTT indicator with 35 second
  • Bluetooth & Hardwire stereo music
  • RXI – Radio Traffic Active Indicator
  • Crew CALL function when observer
  • Pilot isolation, Crew isolation and 4 transmit locations
  • Offside Radio Audio Selectable
  • Custom configurable decals
  • Pin Compatible AMS44



SPECIFICATION

MUSIC FREQ RESPONSE 3 dB 20 Hz – 16 kHz audio selector/ intercom: C50c, Class A
operating temperature range: Operating: -20°C to +55°CShort Term Operating:-40° C to +70°CSurvival:-55° C to +85°C , Hub: -55º C to +70ºC VOLTAGE: 18 to 33 VDC
DIMENSIONS: Height: 1.9 in. (4.8 cm) Width: 5.75 in. (14.6 cm) Depth behind panel (PAC45): 7.38 in. (18.75 cm) including connectors MAXIMUM CURRENT:  0.5 Amp (Externally protected by a 1 Amp circuit breaker)
ALTITUDE:  Up to 55,000 feet in a non-pressurized area of the cockpit input isolation:  -60 dB (min.)
UNIT weight:  PAC45D 2.0 lb. (0.90 kg), HUB45D1.0 lbs (.45 kgs), CTL45D 1.0 lbs (.45 kgs) AUDIO SELECTOR PANEL Impedance: 510 Ω
unswitched inputs: transmitter selectIONS: 7 (COM 1, COM 2, COM 3, COM 4, COM 5, COM 6 plus Telephone) (Can be relabled as desired)
headphone impedance: 150 – 1000 Ω headphone output: 200 mW into 150 Ω each side (left and right) headset, no clipping <.5% THD typical
speaker impedance:  4 Ω microphone impedance: 150 - 600 Ω
intercom position: Up to 8 places (with individual IntelliVOX  circuits) music inputs:  1 (Stereo) plus Bluetooth
music muting: -30 dB "Soft Mute" when Com or intercom active distortion: <1% THD @ 200 mW into 150 Ω
BLUETOOTH RADIO: Class 3, FCC ID QOQWT32i SPEAKER OUTPUT (-0002 & -0102 ONLY): 3 Vrms Maximum
STEREO FREQ. RESPONSE 3 DB (INTERCOM):  20 Hz - 16 Hz ALERT POWER LIGHTING: PAC45D (Hub + CTL mated): 500mA, HUB45D only 350 mA 10 mA, CTL45 only: 150 mA < 5mA
hub45 operating range: Operating: -45°C to +55°C, Short Term Operating:-45° C to +71°C , Survival:-55° C to +85°C MIC FREQ RESPONSE 3 DB: 300 Hz - 6000 Hz
SWITCHED RECEIVE INPUTS: 11 (COM 1– COM 5, TEL, NAV 1, NAV 2, Marker, ADF, DME)(Can be relabled as desired) PA OUTPUT: 1 Vrms into 500Ω





Part Number: DESCRIPTION:
050-045-0005 Single Panel Mounted System (HUB45 and CTL45D )
050-045-0101 Remote Mounted Audio Hub for Analog I/O and Processing









050-045-0005
- Dual Audio Controller System
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
050-045-0101
- Dual Audio Controller (Hub Only)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
