Part #:

Model: PMA8000B

PS Engineering - Audio Panel

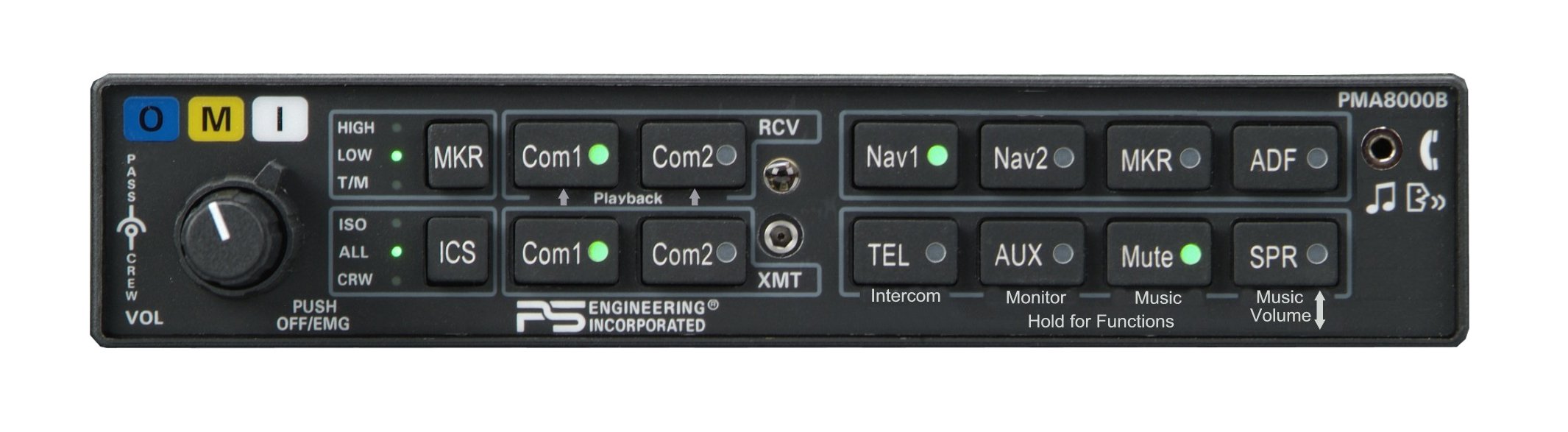

product image
Part Number :


PMA8000B
FEATURES
  • Includes all features of the PMA8000 plus additional features
  • Direct plug-in replacement for the Garmin GMA 340
  • Stereo Audio Selector Panel with 6-place Intercom
  • Cell phone interface
  • Monitor Mode allows automatic muting of non-primary radio
  • 4-Music mute modes: Mute On, Mute Off, Radio Mute, Intercom Mute
  • Dedicated front panel music volume control
  • Easy front panel control for telephone side tone on/off
  • Full duplex TEL mode allows connection to hands-free cell phone
  • Front panel "Mode" switch allows control of music muting
  • SoftMute or Karaoke muting modes automatically cut music out or place music under radio calls
  • Integrated infrared sensor for in-flight entertainment systems
  • Dual independent music inputs
  • Concentric volume controls one for Crew intercom volume and other for passenger intercom volume
  • "IntelliVox" feature samples ambient noise and adjust threshold for clip-free voice communications
  • Swap Mode
  • Selectable Split Mode ICS
  • Marker Beacon Receiver with Lights
  • Selectable receiver audio in Split Mode
  • Accepts up to six inputs from engine gauges to provide audio annunciation from preprogrammed message to be heard in pilot's headphones when a problem arises
  • Aircraft Radio Digital Recording monitors radio conversations and stores up to one minute of audio with 8 message storage
  • Isolate, Crew and All intercom modes
  • Smart Function Keys allow pilot to customize audio panel to particular needs
  • Front panel multipurpose jack allows easy connection for portable music devices output
  • Multipurpose jack is automatically configured to the crew while alert messages are not muted for the pilot and co-pilot
  • TSO'd
  • 3 year warranty - see conditions



SPECIFICATIONS
FAA TSO: C50c, C35d, Class A Certification: RTCA DO-214, DO-143, DO-160D, DO-178B, DO-254
Dimensions: 6.25"W x 1.3"H x 7.15"L Weight: 1.34 lbs.
Env. Categories: A1D1CABSMXXXXXX ZBABATBXXE2XXX Power Requirements: 11-33 VDC, 2.5A
Receiver Inputs: 6 (Nav 1,Nav 2,ADF,DME,MKR,AUX) Marker Beacon: Internal
Selector Input Impedance: 510 Ohms Input Isolation: -60 dB
Speaker Muting: -60 dB Speaker Power: 3 Watts (14VDC) / 10 Watts (28VDC)
Receiver Inputs: 9 (Com 1, 2, TEL, Nav 1, 2, ADF, MKR, AUX, DME) Unswitched Inputs: 5
Transmitter Selections: 4 (Com 1, Com 2, TEL, Com 1/2) Speaker Impedance: 4 Ohms
Headphone Impedance: 150 - 1000 Ohms Headphone Output: 38 mW, no clipping <1% THD
Intercom Positions: 6 places (w/IntelliVox circuits) Music Inputs: 2 (Independent, Stereo)
Music Muting: >-30 dB "Soft Mute" Distortion: <1% THD @ 38 mW into 150W
Mic Freq Response: 300 Hz - 6000 Hz (3 dB) Music Freq Response: 20 Hz - 20 kHz (3 dB)
MB Frequency: 75 MHz Crystal Controlled  MB Sensitivity: 1000 mVolts (low) 200 mVolts (high)



050-890-0202
- Audio Panel
Price Condition Delivery
$1,395.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

050-890-0502
- Audio Selector Panel 6-place stereo
Price Condition Delivery
$1,795.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

050-890-0705
- Audio Panel w/ Bluetoooth (NVG)
Price Condition Delivery
$2,095.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

050-890-0712
- Audio Panel w/ Bluetooth
Price Condition Delivery
$1,795.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No

050-890-0802
- Audio Panel w/ Bluetooth Interface
Price Condition Delivery
$1,695.00 NEW OUTRIGHT CALL OR RFQ

SEA Repair Capabilities: No
