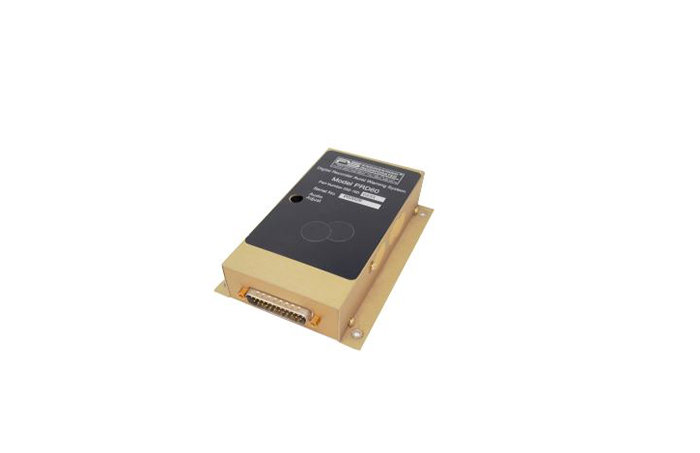

product image

Part #:

Model: PRD60

OEM:

PS Engineering

Desc:

Dig recrdr Aural Wrng Sys: 4 unswtd Inpt

Part Number :


PRD60

FEATURES

  • PRD60 is an accessory device designed to improve the safety of flight by providing an aural annunciation of out of limit conditions
  • This unit contains a 4-channel summing amplifier to allow multiple unswitched audio sources to be combined into one output
  • Remote-mounted device with input for up to six (6) discrete, ground seeking annunciations
  • 4-channel summing amplifier allows multiple unswitched inputs to be combined into a single output
  • Provides audio summing for up to four unswitched inputs



SPECIFICATIONS
dimensions: Height: 1.25 in. Length: 5.5 in Width: 4.0 in . (w/ mounting flanges & sub-d connector) MAXIMUM CURRENT: 750 mA (Externally protected by a 1 Amp circuit breaker)
voltage: 11 to 33 VDC AUDIO SELECTOR INPUT PANEL IMPEDANCE: 510 Ω
oPERATING TEMPERATURE: -15º C to 55º C ALTITUDE: Up to 50,000 feet in an unpressurized area of the aircraft
WEIGHT (WITH CONNECTOR): 8.5 Oz. (0.34 kg) STORAGE TEMPERATURE: -40º C to 85º C
INPUT ISOLATION: -60 dB (min.) HEADPHONE IMPEDANCE: 150 - 1000 Ω 
HEADPHONE OUTPUT: 38 mW into headset, no clipping into 150 Ω DISTORTION: <1% THD @ 38 mW into 150 Ω
AUDIO FREQU RESPONSE, 3 DB: 300 Hz - 6000 Hz faa-tso (pending): C139a, RTCA-214A





Part Number Description:
pRD60 Remote Aural Warning System and Sunning Amplifier





050-160-0200
- Digital Audio Annunciator (6-Channel)
Price Condition Status
$699.00 NEW OUTRIGHT REQUEST LEAD TIME
050-160-0239
- Digital Recorder Aural Warning Sys
Price Condition Status
$699.00 NEW OUTRIGHT REQUEST LEAD TIME
050-160-0254
- Dig recrdr Aural Wrng Sys: 4 unswtd Inpt
Price Condition Status
$825.00 NEW OUTRIGHT REQUEST LEAD TIME
050-160-0268
- Remote Aural Warning System w/ Custom
Price Condition Status
$800.00 NEW OUTRIGHT REQUEST LEAD TIME

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.
