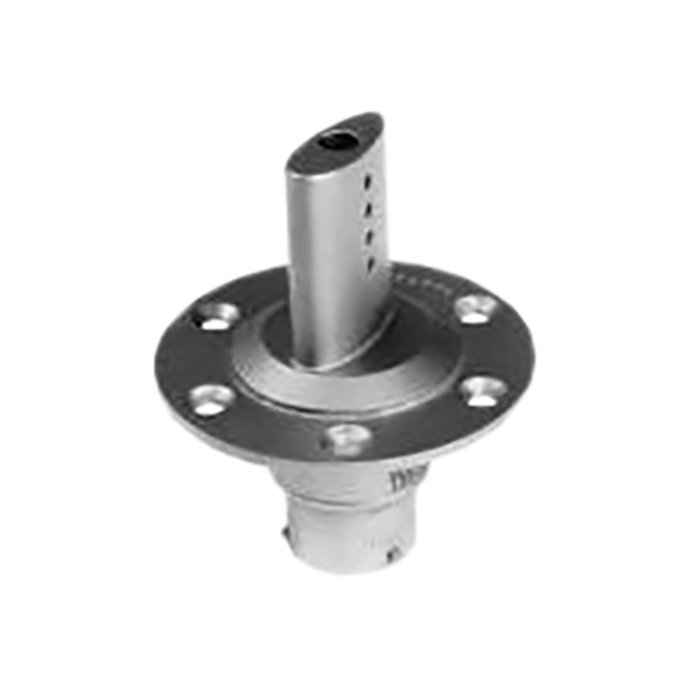

Picture of product 0129H

Part #: 129H

Model: 0129H

NSN:

6685-01-394-0962

OEM:

Rosemount

Desc:

Outside Air Temperature Probe

Part Number :
Temperature Transmittor Ref. Rosemount 644ranaq4

0129H



FEATURES

  • Outside Air Temperature (OAT) Sensor
  • Singal or Dual 500 ohm elements with Bayonet connector
  • Non-deiced design tends to shed ice buildup
  • Developed for helicopters and other low-to-moderate airspeed vehicles such as UAV's & general aviation aircraft
  • Offers an affordable alternative to high performance 0102 TAT probe
  • Hermetically sealed connector protects sensor from exposure to sand, dust, moisture, and 100% relative humidity



SPECIFICATIONS
altitude: -1,000 ft to 60,000 ft mach no: 0 to 0.6
OAT: -65°C to +85°C elemental resistance(s): 500 ±0.6 ohms at 0°C
excitation current: 1 mA recommended max temp exposure: -70°C to +250°C
vibration:  Per MIL-STD-810C, Cat. b2, Figure 514.2, Curves C & J at 5 g's Shock: Per MIL-STD-810D, Method 516.3, Procedure 1, Paragraphs 1-3.3, 11-1.1 & 11-3.1 (30 g's, all axes)
recovery error: Max of 1% at Mach 0.6



Part Number: Description:
129h Outside Air Temperature  Sensor



Serial # B97973
Condition NEW
Mods -
Tag Date 03/25/24
Shop Rosemount Aerospace Inc.
Warranty 1 Year
Serial # B97974
Condition NEW
Mods -
Tag Date 03/25/24
Shop Rosemount Aerospace Inc.
Warranty 1 Year
Serial # B95582
Condition NEW
Mods -
Tag Date 12/28/23
Shop Rosemount Aerospace Inc.
Warranty 1 Year
Serial # B95583
Condition NEW
Mods -
Tag Date 12/20/23
Shop Rosemount Aerospace Inc.
Warranty 1 Year
Serial # B95580
Condition NEW
Mods -
Tag Date 12/07/23
Shop Rosemount Aerospace Inc.
Warranty 1 Year
Serial # B95581
Condition NEW
Mods -
Tag Date 12/07/23
Shop Rosemount Aerospace Inc.
Warranty 1 Year
129H
- Outside Air Temperature Probe

NSN: 6685-01-394-0962

Price Condition Status
$5,875.00 NEW OUTRIGHT 6 IN STOCK

Click on a question below to see the answer. If you have a question about this model that is not answered below, please contact questions@seaerospace.com


In relation to NE (New) parts, many OEMs change their prices and availability without any notice to dealers or the industry. Therefore, through the REQUEST or RFQ indication, we ask that customers contact us for the most accurate price and availability.

In relation to SV & OH parts, the used parts aftermarket in the aviation industry is not an infinite supply. It is a dynamic, constantly changing market that is significantly affected by and susceptible to highs and lows in supply and demand. Therefore, although we attempt to, at times, we are unable to predict the exact moment when an item may be available. Once again, through the REQUEST or RFQ indication on our website, we ask that customers contact us for the most current and accurate price and availability.

PLEASE NOTE - Publications are for Reference Only
