Model: MIMO

Sensor Systems - Multiple Input/Output Antenna

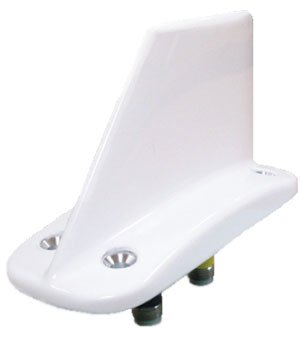

product image
Part Number :


MIMO
FEATURES
  • MIMO Antenna - Supports WLAN, Quad GSM and WiMAX
  • Operates from 2.2 to 2.5 GHZ, supporting 802.11 b/g/n and 802.16 WiMAX standards
  • Dual element design reduces the amount of antennas necessary to suport MIMO radio systems
  • Utlizes polarization diversity with 12dB minimum isolation between the elements
  • For commercial, military & general aviation aircraft
  • Federal & Military Specs: MIL-HDBK-5400, MIL-STD-810D, MIL-E-5272C, MIL-A-7772B, DO-160G



SPECIFICATIONS
Frequency: 2.2 - 2.5 GHz VSWR:  ≤ 2.0:1 (J1 & J2)
Pattern: J1: Hemispherical J2: Cosinusoidal Polarization: J1: Horizontal, J2: Vertical
Impedance: 50 ohms Power: 5 Watts
Lightning Protection:  DC Grounded Weight: 6.0 oz
Measurements: 2.86" H x 5.12" L Material: 6061-T6 aluminum/Thermoset Plastic
Finish: Skydrol Resistant Polyurethane Enamel Connector: TNC Female (2)
Side Load: 10 PSI Temperature: -6°F to +185°F
Vibration: 10G's Altitude: 50,000 ft.



Part Number: Description:
S65-5366-727 Multiple Input/Output Antenna 2.5 - 2.5 GHz
S65-5366-728 Multiple Input/Output Antenna 4.9 - 6.0 GHz



X
X
X
S65-5366-727
- Multiple Input/Output Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
S65-5366-728
- Multiple Input/Output Antenna
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
