Part #: 833610-02

Model: AIS-360

Shadin - Digital Discrete Switch Data Converter

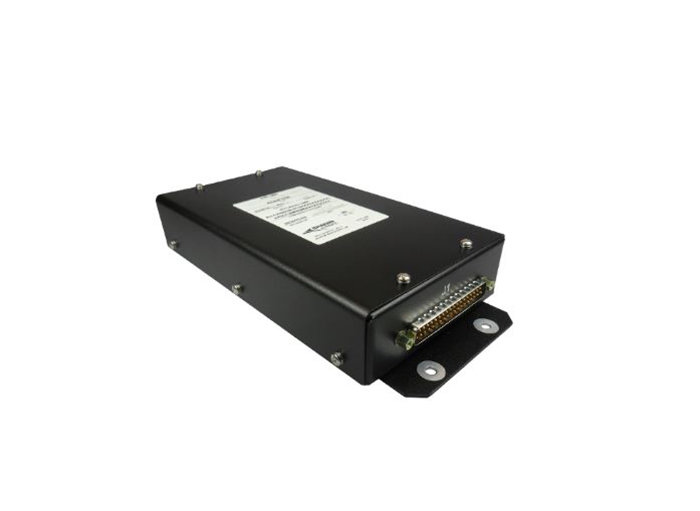

product image
Part Number :
Image result for shadin avionics logo
AIS-360

DESCRIPTION
  • ARINC 429 transmit
  • ARINC 429 receive
  • discrete I/O
  • bidirectional RS-232
  • bidirectional RS-422 / RS-485
  • Ethernet
  • ARINC 429 LS to ARINC 429 HS
  • ARINC 429 to Discrete
  • ARINC 429 to Ethernet
  • Ethernet to ARINC 429
  • ARINC 429 Buffer
  • EFB data converter/concentrator (FMS to EFB)
  • ADS-B converter
  • ADS-B data concentrator
  • ARINC 429/743 data combiner
  • ARINC 429 HS to ARINC 429 LS
  • ARINC 429 filter and combiner
  • CSDB to ARINC 429 and/or ARINC 429 to CSDB
  • ARINC 429 to serial and/or serial to ARINC 429
  • ARINC 429 to NMEA and/or NMEA to ARINC 429
  • Cabin management and entertainment
  • Avionics system integration
  • Protocol Converter
  • Data Concentrator Unit (DCU)
  • Aircraft Interface Device (AID)
  • Aircraft Interface Unit (AIU)




SPECIFICATIONS

 DIMESIONS: 8.50”L x 4.00”W x 1.59”H WEIGHT: 0.9 lb.
power supply voltage: +18VDC to 33VDC operating temperature:  -15°C to +70°C
supply current: 100mA Max storage temperature: -55 C to +85 C
inputs: ARINC 429: Low Speed, 12-14.5Kbps 1% ARINC 429: High Speed, 100Kbps 1% outputs: ARINC 429: Low Speed, 12-14.5Kbps 1% ARINC 429: High Speed, 100Kbps 1%
environment: RTCA/DO-160F Categories: A2-CAB[R(B, B1) U2(F, F1)]XXXXXXZ[AXX]AR[CC][WW]M[A3J33]XXAX in-flight loss of cooling: Equipment can run indefinitely with no cooling
MIL-HDBK-217 MTBF: 30,000 hours mounting locations: 7.878”L x 1.752”W
Mounting: Screw size #8 altitude: 50,000ft
Decompression: 55,000ft Overpressure: -15,000ft
Part Number: Description:
833610-02 AIS-360 Digital Converter





833610-02
- ARINC Buffer/HS to HS/LS to LS
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ
