AMC
DESCRIPTION

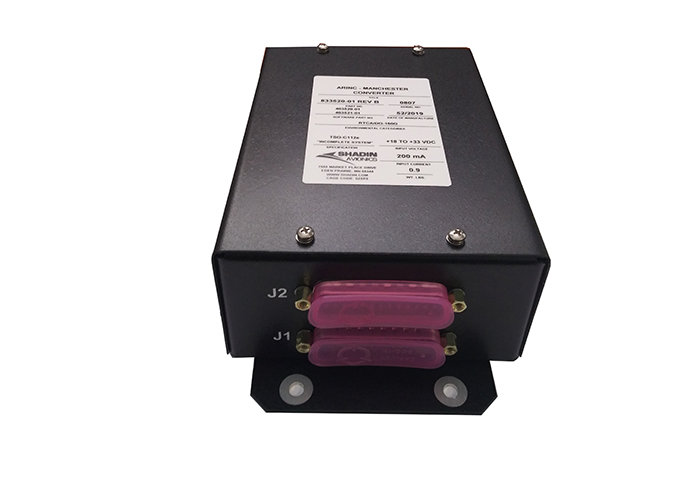

  • The AMC is intended to intercept and inject messages between the Radio Management Unit (RMU) and the RCZ-800/850 integrated communications unit
  • The AMC acts as the controller for the ADS-B compliant transponder via an A-429 bus (red), in place of the existing Honeywell XS-850 transponder
  • Messages from the RMU BUS (blue) are forwarded to the COM BUS (orange)
  • Return status messages from the transponder, combined with COM BUS data, are transmitted on the RMU BUS
  • Software in this product was developed in accordance with RTCA/DO-178C Design Assurance Level C
  • There are no programmable logic devices in this product; hence RTCA/DO-254 does not apply
  • Failure of the function per TSO-C112c could result in a Major failure condition, resulting in misleading data



SPECIFICATIONS

NOMINAL DIMESIONS: 6.9”L x 4.2”W x 2.2”H WEIGHT: 0.9 pounds
MOUNTING LOCATION: 6.25”L x 2.00”W MOUNTING: 4 Screws (See Installation Drawing D833520-01 in Appendix A)
ENCLOSURE: Aluminum alloy with chemical conversion coating, painted black POWER SUPPLY: +18VDC to +33VDC
SUPPLY CURRENT: +18VDC to +33VDC THERMAL DISSIPATION: 8.0 watts typical
TESTED: RTCA/DO-160G Categories: [D2X]BBB[R(B,B1)]XXXXXXZ[BXX]AZ[CC][RR]M[XXJ3L3]XXAX
Operating Temperature: -55°C to +70°C Operating Altitude: Up to 50,000 feet
Storage Temperature: -55°C to +85°C In-Flight Loss of Cooling: Equipment can run indefinitely with no cooling
MIL-HDBK-217F MTBF: > 20,000 hours (estimate) [Airborne Inhabited Cargo (AIC), 30°C] 403520-01: Software for Main Processor, DAL C
TSO-C112e : “INCOMPLETE SYSTEM” 403521-00: Software for Bus Processors, DAL C
Part Number Description
833520-00 Original Production Unit
833520-01 Current Production Unit





833520-01
- ADSB to ARINC 429 Converter
Price Condition Status
$7,750.00 NEW OUTRIGHT STOCK
833520-00
- ASDB to ARINC 429 Converter
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST
