Part #: 8900

Model: AMS-2000

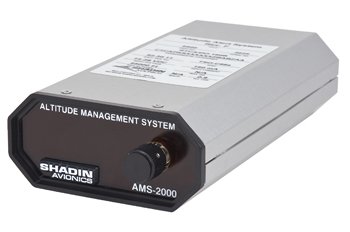

Shadin - Altitude Alerter System
product image
Part Number :


AMS-2000
FEATURES
  • Provides audio and visual warning broadcast of deviation from assigned altitude
  • Level-off warning sounded and displayed at user-defined distance from target altitude
  • Alerts pilot when above pre-selected Decision Height or MDA
  • Gear-down reminder
  • Displays density altitude and aircraft/engine performance percentage
  • Digital display of altitude from -1000 to 62000 ft. in 100 foot increments
  • Adjustable audio alert tone and level
  • Compatible with most Mode-C transponders in current production
  • Standard rectangular 1/2 ATI configuration

ADDITIONAL FEATURES OF AMS-2000 WHEN COUPLED WITH SHADIN 8800 HIGH RESOLUTION ALTITUDE ENCODER:

  • Time-based level-off warning sounded and displayed 15 seconds from target altitude
  • Digital display of altitude enhanced to 10 foot increments
  • Digital reading of Instantaneous Vertical Speed (IVS)Deviation envelope adjustable in 10-foot increments



SPECIFICATIONS
Weight: 9 oz. Size: 1.5" x 3.125" x 5.75"
Temperature: -20 to +55C Power: 10-28 VDC at 300 ma max
Altitude Range: -1000 to 62000 feet Level Off Threshold: 100-1000 feet in 100 foot increments
Deviation Envelope: adjustable buffer in 100-300 feet range Alert Resolution: 100-foot, 10-foot when connected to Shadin encoder
Display: eight alphanumeric LED characters with variable intensity Audio Output: sonalert control. Eight pilot-selected audio output levels for volume and tone adjustment. Output impedance- 500 ohms



8900
- Altitude Alerter System
Price Condition Delivery
CALL OR RFQ NEW OUTRIGHT
$2,250.00 SV OUTRIGHT
$1,450.00 SV EXCHANGE

SEA Repair Capabilities: No
