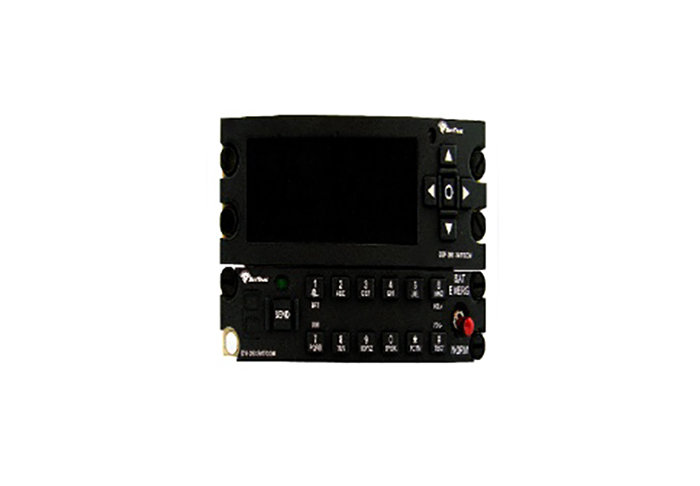

product image

Part #: 105-300-01

Model: DVI-300C

OEM:

SkyTrac

Desc:

Dispatch Voice Interface

Part Number :

Logo



DVI-300C

FEATURES
  • CDP-300 and DVI-300 combined, make up the cockpit display and dialer wired to the aircraft audio panel
  • Interface enables two-way messaging and voice calls. Pre-configured
  • Editable field or free-form messages can be sent and received through the CDP-300 and DVI-300
  • Emergency switch
  • Tag flight number of pilot log to each position report
  • Programmable phone numbers and email addresses
  • Multi – configuration with four interfaces
  • NVIS friendly model available CDP-300



SPECIFICATIONS

Power Requirements: 20.5-32.2 Vdc Aircraft Power per Mil-Std-704 D Power Consumption: 80 mA @ 28 Vdc
Operating Temperature:   -15°C to +55°C Short Term Operating TEMP: -40°C to +70°C
Mounting:  DZUS rails using 4 1/4 Turn Studs Cooling: Normal air circulation
Dimensions: H x W x D = 1.8” x 5.75” x 3.2” (46.7mm x 146mm x 80.5mm) Weight: 0.73 lbs (0.33 kg)
Environmental Tests: D0-160 Revision E DVI-300
Part Number: Description:
105-300-01  Voice Interface ,Dialer w/ toggle switch



105-300-01
- Dispatch Voice Interface (Dialer w/ toggle switch)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
