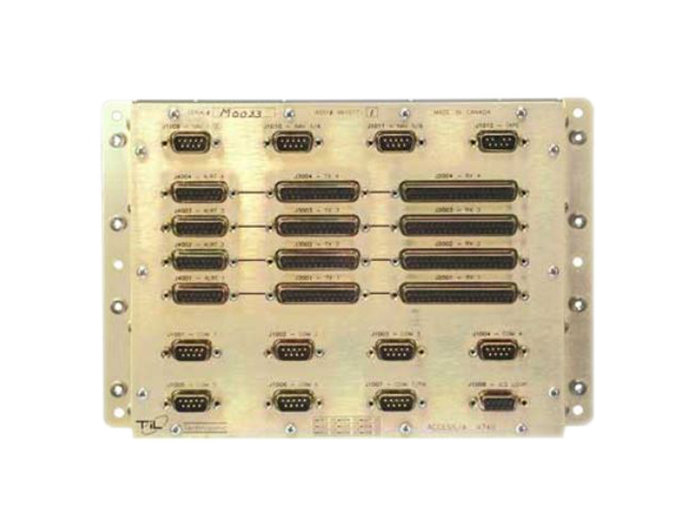

product image

Part #: 961077-1

Model: A740

OEM:

Technisonic

Desc:

Interconnect Patch Bay (4 stations)

Part Number :



A740



FEATURES

  • 24 standard D-subminiature connectors
  • Machined pin construction
  • Heavy gold plating and jackpost style connector locks
  • Internally mapped to provide 4 parallel connector groups for up to 4 seperate audio stations
  • 7 plugs for transceiver/PA attachment
  • 3 plugs for nav aid interfacing
  • Dedicated tape player(entertainment) connection
  • ICS tie line management connector for intercom loop control


SPECIFICATIONS

WIDTH: 8.438 Inches weight: 2.0 lbs (0.91 kg)
height: 8.176 Inches temperature operating: -40°C to +70°C
altitude: 30,000 ft depth: 1.025 Inches
mounting: Bulkhead mounting, min. 4 x 8-32/10-32 screw/bolts humidity: 95% Non-condensing
temperature non-operating: -55°C to +85°C Microphone rfi bypass: 0.022uF/100V
Part Number: Description:
961077-1 Interconnect Patch Bay (4 stations)



961077-1
- Interconnect Patch Bay (4 stations)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
