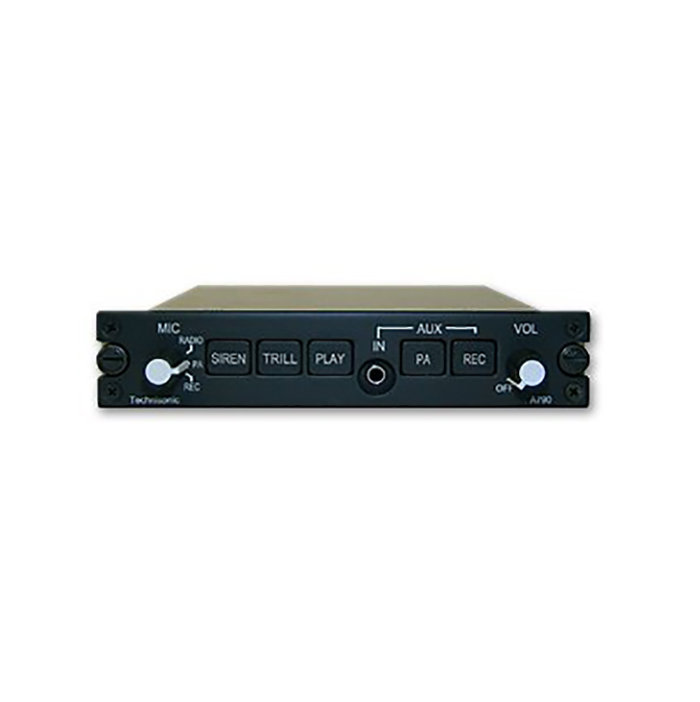

Picture of product A790

Part #:

Model: A790

OEM:

Technisonic

Desc:

Loud Hailer Controller

Part Number :



A-790



FEATURES

  • Loud Hailer Controller
  • Airborne public address amplifier-controller and siren generator
  • Supports both 5 and 28 volt back lighting
  • Display color comes in NVG Compatible Green
  • Designed to work in conjunction with a higher power public address system such as the Power Sonics Model PSAIR42
  • User can use the PA system directly with the headset mic
  • A message can be pre-recorded in the A790 to be played over the PA system
  • A siren or a trill sound can be played through the PA
  • Auxiliary input jack allows for an input from an external source such as an MP3 player to be routed to the PA system or to the A790 message recorder



SPECIFICATIONS

Mic Audio Input: 0.145vrms (-10 dBm) nominal Audio Input: 2.1vrms (8.7 dBm) max @ 600Ω
Dimensions: 5.6" x 1.125" x 5.75" Weight: 13.4 oz. (375 g)
Mounting: Panel Mount via Dzus fasteners Temperature Range: -30°C to +70°C
Power Requirements: 28.0 VDC, ±15% 500 mA max Back Lighting: 28 volts or 5 volts @ 2mA max
Display Color: NVG Compatible Green



Part Number: Description:
081250-1 5/28 VDC backlighting. NVG compatible, LH Controller



081250-1
- Loud Hailer PA Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
081250-1, OPT2
- Custom Loud Hailer Controller
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
