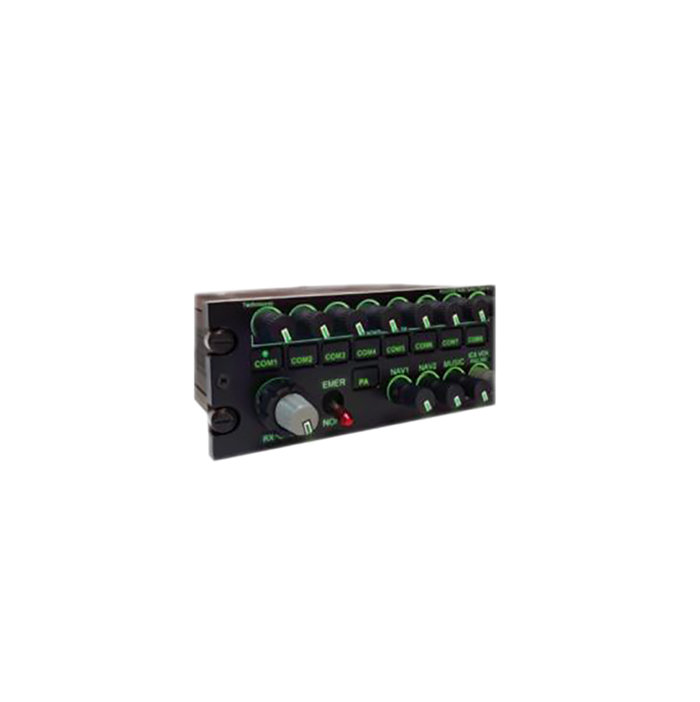

Picture of product TDAP-611

Part #: 151292-1

Model: TDAP-611

OEM:

Technisonic

Desc:

Digital Audio Panel

Part Number :




TDAP-611



DESCRIPTION

  • Technisonic Digital Audio Panel (TDAP) Audio Management System
  • Panel mounted
  • Provides centralized control and management for all audio signals within the airframe for up to 7 distinct Users (Pilot, Co-pilot, and five passengers)
  • Connects to all aircraft Transceivers (up to a maximum of 8 distinct Transceiver Inputs), navigational receivers (up to a maximum of 8 distinct Receiver Inputs)
  • Connects to externally alerting sirens and user headsets
  • Supports full Simulcast transmitting
  • Monitor Only functionality amongst all connected Transceivers



SPECIFICATIONS

WIDTH: 5.73 inches (max.) HEIGHT: 2.24 inches (max.)
DEPTH: 4.59 inches (behind panel) Weight: 2.23 lbs. (1.01 Kg)
Mounting: Standard Dzus, 4 fasteners DC Voltage: 15.0 V, 28 V, 32.2 V (MIN, TYPICAL, MAX) (System performance will be degraded at upper and lower limits)
DC Current: < 1 A Backlighting Input: High Level Backlighting Voltage 0-28 VDC @ 20 mA Max, Low Level Backlighting Voltage 0-5 VDC @ 20 mA Max
Headset Channel Output Impedance: 30 Ω Input Impedance: 5k1 Ω (approx.) (Normal Mode, any RX input)
Temperature (Operating): -45°C to +70° Celsius Temperature (Survival Non-Operating): -55°C to +85° Celsius
Humidity: 95% Non-condensing Shock: 12 g (any axis)
Altitude: 15,000 feet Speaker Power Output: At least 2.5 W into 8 Ω



Part Number: Description:
151292-1 Digital Audio Panel





151292-1
- Digital Audio Panel
Price Condition Status
$4,750.00 NEW OUTRIGHT REQUEST LEAD TIME
