Part #: 081252-1-10

Model: TDFM-136B

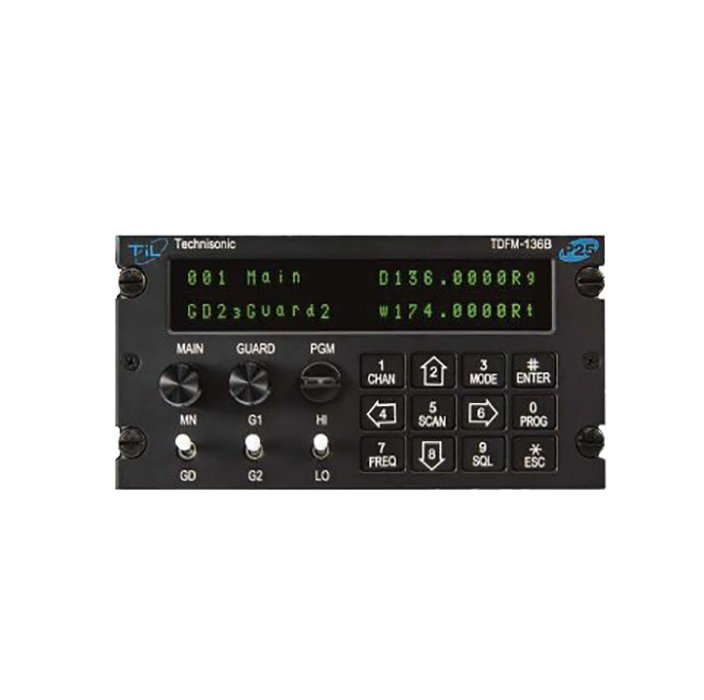

Technisonic - VHF/FM Digital Transceiver
Part Number :


TDFM-136B
FEATURES
  • Project 25 U.S. Forest Service compliant airborne VHF/FM transceiver
  • Digital or conventional analog FM communications on every currently available channel from 136 to 174 MHz within the VHF/FM band
  • Drop-in replacement for existing Technisonic and NPX radio sets
  • Capable of multimode operation at 12.5 kHz analog* and Project 25 12.5 kHz digital modulation on a channel-by-channel basis
  • Two Channel Synthesized Guard receiver
  • Up to 230 non-volatile memory channels
  • USB upload/download function allows operator to program all radios via a PC
  • Panel mounted (standard Dzus)
  • Replaces the TDFM-136A



SPECIFICATIONS
Frequency Range: 136.000 MHz to 174.000 MHz  Operating Modes:  Project 25 CAI and conventional analog simplex or semi duplex P25 Conventional Digital Mode
Channel Spacing: 12.5 /25 kHz * (230 Preset Channels) Certification:  FCC and DOC Type Approved
Physical Dimensions: 3.0” (H), 5.75” (W) and 8.0” (D) Weight: Approx. 3.5 lbs
Altitude: 50,000 ft Temperature Range:  -45°C to +70°C
Backlighting: 28 VDC or 5 VDC, software selectable  Power Requirement: 28 VDC, ±15% Receive - 0.7 A Max. 1 Watt transmit - 1.3 A Max 10 Watts transmit - 2 A Max
Guard Receiver:  2 Channel Synthesized  CTCSS Squelch Capability:  Encodes/Decodes all 64 Available Tones
DPL/DCS Capability:  All Available Digital Sq. Codes  DTMF Encoder:  All standard DTMF tones Available
Audio Output:  500 mw into 600 Ohms  Speaker Output:  2.5 Watts into 4 Ohms



Part Number VHF FM Transceiver Description:
081252-1-10 Green Display, Single Antenna, Not Encryption Capable
081252-1-11 Green Display, Single Antenna, Encryption Capable
081252-1-20 Green Display, Dual Antenna, Not Encryption Capable
081252-1-21 Green Display, Dual Antenna, Encryption Capable
081252-2-10 Red Display. Single Antenna, Not Encryption Capable
081252-2-11 Red Display, Single Antenna, Encryption Capable
081252-2-20 Red Display, Dual Antenna, Not Encryption Capable
081252-2-21 Red Display, Dual Antenna, Encryption Capable
081252-3-10 N/V, Single Antenna, Not Encryption Capable
081252-3-11 N/V, Single Antenna, Encryption Capable
081252-3-20 N/V, Dual Antenna, Not Encryption Capable
081252-3-21 N/V, Dual Antenna, Encryption Capable
081252-1-10
- VHF/FM Digital Transceiver (Green)
Price Condition Delivery
$13,950.00 NEW OUTRIGHT VIEW STOCK

SEA Repair Capabilities: No

081252-1-11
- VHF/FM Digital Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

081252-1-20
- VHF/FM Digital Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

081252-1-21
- VHF/FM Digital Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

081252-2-10
- VHF/FM Digital Transceiver (Red)
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

081252-2-11
- VHF/FM Digital Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

081252-2-20
- VHF/FM Digital Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

081252-2-21
- VHF/FM Digital Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

081252-3-10
- VHF/FM Digital Transceiver (NVG)
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

081252-3-11
- VHF/FM Digital Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

081252-3-20
- VHF/FM Digital Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No

081252-3-21
- VHF/FM Digital Transceiver
Price Condition Delivery
CALL OR RFQ CALL OR RFQ CALL OR RFQ

SEA Repair Capabilities: No
