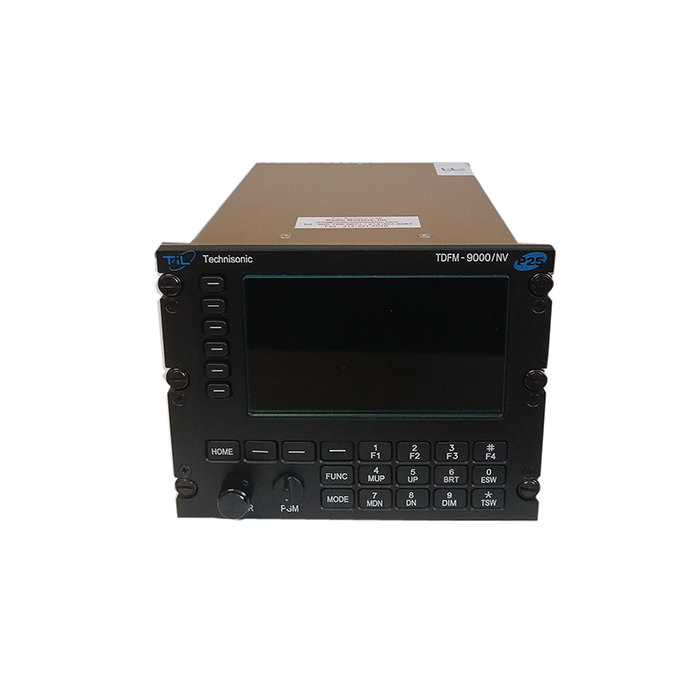

Picture of product TDFM-9000

Part #:

Model: TDFM-9000

OEM:

Technisonic

Desc:

Airborne Transceiver TDFM9000-P90692NV Multiband Transceiver

Part Number :



TDFM-9000
FEATURES
  • The TDFM-9000 radio offers Project 25 Analog/Digital/Encrypted/Multi-band AM/FM radio transceivers will meet operating requirements in both Phase I (FDMA) and Phase II (TDMA) modes
  • TDFM-9000 Series consists of multiple models which are configurable to meet each user’s specific requirement
  • Dzus panel mount and each unit is completely self-contained (no remote mount box)
  • All-Band P25 module can support analog/digital operation on the full FM Band spectrum (VHF, UHF, and 7/800)
  • Can be configured to support operation on any mix of all three bands, two bands, or on any single band
  • The TDFM-9000 can support up to six (6) All-Band P25 modules in all the available configurations
  • Optional P25 Phase 1 (FDMA) and Phase 2 (TDMA)
  • Trunking is available
  • Radio modules can be individually configured to include any P25 options such as trunking, encryption, OTAR, etc
  • Optional Encryption protocols: AES, DES-OFB, DES-XL, DVP, DVP-XL.
  • Standard ADP Encryption
  • Available Multiple Encryption Keys: 64 Common Key Reference (CKR) or 16 Physical Identifier Reference (PID) keys
  • Radio modules can store 3000 channels and can be programmed to operate in digital or analog mode on a channel-by-channel basis
  • All radio module independently supports SCAN across its entire frequency spectrum
  • Built-in audio switching allows multiple RF modules in either combined or separate transceiver configurations
  • User 1, User 2 operator configuration
  • Supports simulcast and cross-band repeat
  • Programming is via a Motorola APX CPS software program
  • SINGLE BAND OPTIONS: VHF (136-174 MHz), UHF (380-520 MHz), 7/800 (764-870 MHz)
  •  TDFM-9000 Installation Instructions



SPECIFICATIONS

Dimensions: Approx. (L) 8.0" x (W) 5.75" x (H) 4.5" Weight: 7.0 Lbs (3.2 Kg)
Operating Temperature: 30° C to +60° C VOLTAGE: 28.0 VDC ± 15%
Altitude range: -1,500 ft to 55,000 feet CURRENT: 500 mA minimum / 7.5A maximum
audio output power: (including sidetone) 65 mW into 600Ωmicro Microphone Inputs: Carbon or Equivalent
Panel Back Lighting: Voltage-28 or 5 Volts AC or DC (selectable), Current- 100 mA  RF Output Power: 1 or 6 Watts (VHF), 1 or 5 Watts (UHF), 1 or 2.5 Watts (764 – 806), 1 or 3 Watts (806 – 870)
VHF Band: 136 to 174 MHz UHF LO Band: 380 to 470 MHz
UHF HI Band: 450 to 520 MHz UHF Band: 380 to 520 MHz
700 / 800 Bands: 764 to 870 MHz FM Hum and noise in dB (wideband): VHF  -48 , UHF -45, 800 -45
Audio Distortion: VHF 1%, UHF 1.0%, 800  1.0% Frequency Stability in ppm: VHF ± 1.0, UHF  ± 1.0, 800 ± 1.5
Modulation Limiting: Wide band ± 5 kHz, Narrow band ± 2.5 kHz Storage Temperature: -40° C to +80° C



Part Number: Description:
011210-3-6158/P385/28 Multiband Transceiver
101263-2-90-a11-p90101 Airborne Transceiver
101263-2-90-a1d-ag0-p90113 Airborne Transceiver
101263-2-90-A55-AX8-P90531 Airborne Transceiver
101263-2-90-A55-AXZ-P90570 Airborne Transceiver
101263-2-90-A5R-AMO-P90113 Airborne Transceiver
101263-2-90-A5R-AMO-P90113 Airborne Transceiver
101263-2-90-AMM-AMZ-P90509 Airborne Transceiver
101263-2-90-AMT-A88-P90016 Airborne Transceiver
TDFM9000-P0048 Airborne Transceiver
TDFM9000-P90027NV Airborne Transceiver
TDFM9000-P90035NV Airborne Transceiver
TDFM9000-P90088NV Airborne Transceiver
TDFM9000-P90692NV Airborne Transceiver
TDFM9000-P90113NV Airborne Transceiver
TDFM9000-P90129 Airborne Transceiver
TDFM9000-P90634NV Airborne Transceiver



101263-2-90-A11-P90101
- Multi-Band Airborne Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
101263-2-90-A1D-AG0-P90113
- Transceiver, Airborne, Multi-Band
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
101263-2-90-A55-AX8-P90531
- Transceiver, Airborne, Multi-Band
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
101263-2-90-A55-AXZ-P90570
- Multi-Band Airborne Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
101263-2-90-A5R-AMO-P90113
- Transceiver, Airborne, Multi-Band
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
101263-2-90-A5Z-P90603
- P25 Analog/Digital/Encrypted/MultiBand AM/FM Radio
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
101263-2-90-AMM-AMZ-P90509
- Multi-Band Airborne Transceiver (NVG)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
101263-2-90-AMT-A88-P90016
- Multi-Band Airborne Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
101263-2-90-AZZ-A5R-P90517
- Multi-Band Airborne Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9000-P0048
- Transceiver, Airborne, Multi-band
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9000-P90035NV
- Transceiver, Airborne, Multi-band
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9000-P90088NV
- Transceiver, Airborne, Mult-Band
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9000-P90113NV
- Multi-Band Radio (Army National Guard)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9000-P90129
- Transceiver, Airborne, Multiband
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9000-P90634NV
- 101263-2-90-A5R-AMO-P90634 Airborne Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9000-P90692NV
- TIL Radio 101263-2-AZZ-AZZ-P90692
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
