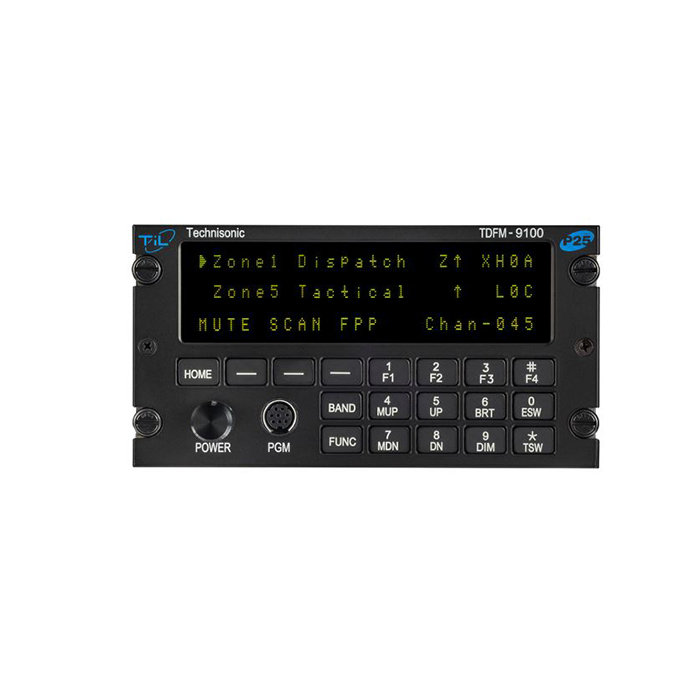

Picture of product TDFM-9100

Part #:

Model: TDFM-9100

OEM:

Technisonic

Desc:

Multi-Band Airborne FM Transceiver

Part Number :



TDFM-9100

FEATURES
  • The TDFM-9100 is a multi-band airborne FM transceiver capable of supporting either one or two All-Band  P25 modules
  • This versatile transceiver is the same physical size (3″ H) as the older (and now discontinued) TDFM-6000 series of radios
  • NVG Display is an available option
  • The new All-Band P25 module can support analog/digital operation on the full FM Band spectrum (VHF, UHF and 7/800) or can be configured to support operation on any mix of all three Bands, two bands or on any single band.
  • The TDFM-9100 can support up to two (2) All-Band P25 modules in all the available configurations.
  • Optional P25 Phase 1 (FDMA) and Phase 2 (TDMA) Trunking is also available.
  • Radio modules can be individually configured to include any P25 options such as trunking, encryption, OTAR, etc.
  • Optional Encryption protocols: AES, DES-OFB, DES-XL, DVP, DVP-XL.
  • Standard ADP Encryption
  • Available Multiple Encryption Keys: 64 Common Key Reference (CKR) or 16 Physical Identifier Reference (PID) keys.
  • Each radio module can store 3000 channels and can be programmed to operate in digital or analog mode on a channel-by-channel basis.
  • Each radio module independently supports SCAN across its entire frequency spectrum.
  • Built-in audio switching allows multiple RF modules in either combined or separate transceiver configurations.
  • Supports simulcast and cross-band repeat.
  • Programming is via a Motorola APX CPS software program.
  • Dimensions: 3.0” (H), 5.75” (W) and 8.5” (D)
  • Max Weight 3.5 lbs.
  • TDFM-9100 Installation Instructions




SPECIFICATIONS

Dimensions: Approx. (L) 8.0" x (W) 5.75" x (H) 3.0" Weight: 3.5 Lbs (1.6 Kg)
Operating Temperature: 30° C to +60° C VOLTAGE: 28.0 VDC ± 15%
Altitude range: -1,500 ft to 55,000 feet CURRENT: 500 mA minimum / 7.5A maximum
audio output power: (including sidetone) 65 mW into 600Ωmicro Microphone Inputs: Carbon or Equivalent
Panel Back Lighting: Voltage-28 or 5 Volts AC or DC (selectable), Current- 100 mA  RF Output Power: 1 or 6 Watts (VHF), 1 or 5 Watts (UHF), 1 or 2.5 Watts (764 – 806), 1 or 3 Watts (806 – 870)
VHF Band: 136 to 174 MHz UHF LO Band: 380 to 470 MHz
UHF HI Band: 450 to 520 MHz UHF Band: 380 to 520 MHz
700 / 800 Bands: 764 to 870 MHz FM Hum and noise in dB (wideband): VHF  -48 , UHF -45, 800 -45
Audio Distortion: VHF 1%, UHF 1.0%, 800  1.0% Frequency Stability in ppm: VHF ± 1.0, UHF  ± 1.0, 800 ± 1.5
Modulation Limiting: Wide band ± 5 kHz, Narrow band ± 2.5 kHz Storage temperature: -40° C to +80° C









Part Number: Description:
121270-1-91-A50-P91843 Multi-Band Airborne FM Transceiver
121270-1-91-AMO-P91823 Multi-Band Airborne FM Transceiver
121270-2-91-A80-P91831 Multi-Band Airborne FM Transceiver
121270-2-91-AZZ-P91587 Multi-Band Airborne FM Transceiver
121270-2-91-AMR-P91106NV Multi-Band Airborne FM Transceiver
121270-1-91-AWW-P91723 Multi-Band Airborne FM Transceiver
 121270-2-91-AWX-P91569 Multi-Band Airborne FM Transceiver
TDFM9100-P91038NV Multi-Band Airborne FM Transceiver
TDFM9100-P91074NV Multi-Band Airborne FM Transceiver
TDFM9100-P91587NV Multi-Band Airborne FM Transceiver
TDFM9100-P91649NV Multi-Band Airborne FM Transceiver





121270-1-91-A50-P91843
- Mutli-Band Airborne, FM Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
121270-1-91-A50-P91900
- Multi-Band Airborne, FM Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
121270-1-91-A5R-P91593
- Mutli-Band Airborne, FM Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-1-91-A80-P91514
- Multi-Band Airborne FM Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-1-91-A80-P91730
- Multi-Band Airborne FM Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-1-91-AM0-P91125
- Multi-Band Airborne, FM Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-1-91-AMM-P91625
- Multi-Band Airborne FM Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-1-91-AMO-P91823
- Multi-Band Airborne Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
121270-1-91-AMX-P91594
- Multi-Band Airborne, FM Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-1-91-AWW-P91723
- Mutli-Band Airborne, FM Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
121270-1-91-AZ0-P91647
- Multi-Band Airborne FM Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-2-91-A5T-P91510
- Multi-Band Airborne
Price Condition Status
RFQ RFQ RFQ
121270-2-91-A80-P91831
- Multi-Band Airborne, FM Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
121270-2-91-AMR
- Multi-Band Airborne Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-2-91-AMR-P91106
- Multi-Band Airborne Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-2-91-AMR-P91106NV
- Mutli-Ban Airborne Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
121270-2-91-AMX-P91563
- Multi-Band Airborne, FM Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-2-91-AWM-P91704
- Mutli-Band Airborne, FM Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
121270-2-91-AWX-P91569
- Multi-Band Airborne Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
121270-2-91-AZZ-P91587
- Multi-Band Airborne Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
121270-2-91-AZZ-P91649
- Multi-Band Airborne, FM Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-2-91-AZZ-P91734
- Multi-Band Airborne Transceiver
Price Condition Status
RFQ RFQ RFQ
121270-2-91-AZZ-P91808
- Multi-Band Airborne, FM Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
12170-2-91-AMM-P91782
- Multi-Band Airborne, FM Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM 9100-P91106NV
- Multiband Airborne FM Transceiver
Price Condition Status
RFQ RFQ RFQ
TDFM9100-P91038NV
- Transceiver, Airborne, Multi-Band
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9100-P91074NV
- Multi-Band Airborne FM Transceiver
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9100-P91077NV
- Multi-Band Airborne FM Transceiver
Price Condition Status
RFQ RFQ RFQ
TDFM9100-P91587NV
- Transceriver, Airborne, Multi-Band
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9100-P91649NV
- Multi-Band Radio (AAR WASS, MIRAMAR)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
TDFM9100-P91699NV
- Mutli-Band Airborne, FM Transceiver
Price Condition Status
RFQ RFQ RFQ
TDFM9100-P91860NVNV
- Multiband Tactical Radio
Price Condition Status
RFQ RFQ RFQ
TDFM9100-P91874NV
- Multi-Band Transceiver (121270-2-91-AMM-P91874)
Price Condition Status
REQUEST NEW OUTRIGHT REQUEST LEAD TIME
